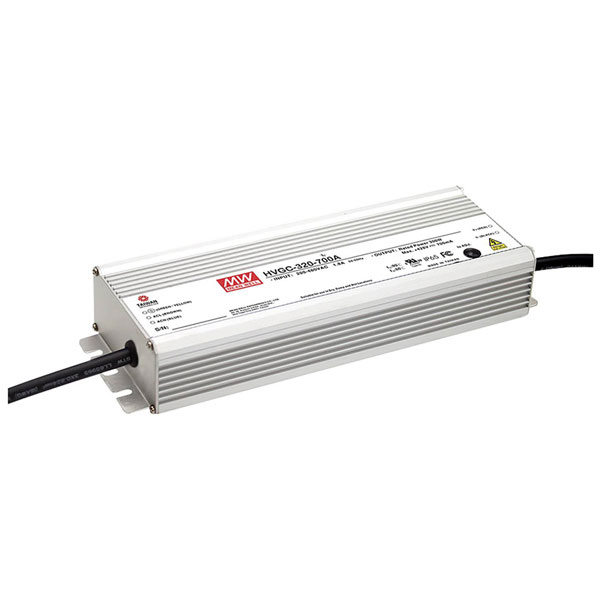

Mean Well HVGC-320-2100AB LED driver 320W adjustable current outdoor use

Mean Well
Order Code:

05-0897

Brand: Mean Well MPN: HVGC-320-2100AB EAN-13: 4021087049252
Qty Was Unit Price (Ex VAT)
1+ £118.78 £107.86
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 16/12/2025

The Mean Well HVGC-320-2100AB LED driver is a constant current 320 W power supply that operates at 1050 - 2100 mA and 76.2 - 152.4 V DC. It is dimmable with a 3-in-1 dimmer and includes features like a PFC circuit and surge protection. This driver is suitable for use on flammable surfaces and is approved for furniture and outdoor applications.
Type LED driver
Connection Open end cable
Dim (L x W x H) 262 x 90 x 43.8 mm
Factory colour Metal
Height 43.8mm
Inputs 1
IP Rating IP65
Length 262mm
Max. output current 2100mA
Max. power 320W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Operating Voltage 230V AC
Output current (max.) - rounded 2.1A
Output current (min.) 1050mA
Output voltage (max.) 152.4V DC
Output voltage (min.) 76.2V DC
Power range 320 W (max)
Protection Class I
Test mark CE, UL, ENEC, MM
Width 90mm
