Mean Well LED Drivers LED driver 608160

Mean Well Brand: Mean Well
The Mean Well ELG series includes a range of 240W LED drivers that are dimmable and suitable for outdoor use, offering features such as surge protection and adjustable voltage options.
Description Image Product Buy Pricing (Ex VAT) IP rating Max. output current Max. power Max. temperature Misc Attribute 1 Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Power range Protection class Test mark Type Connection Dim Factory colour Height Length Min. temperature Misc Attribute 2

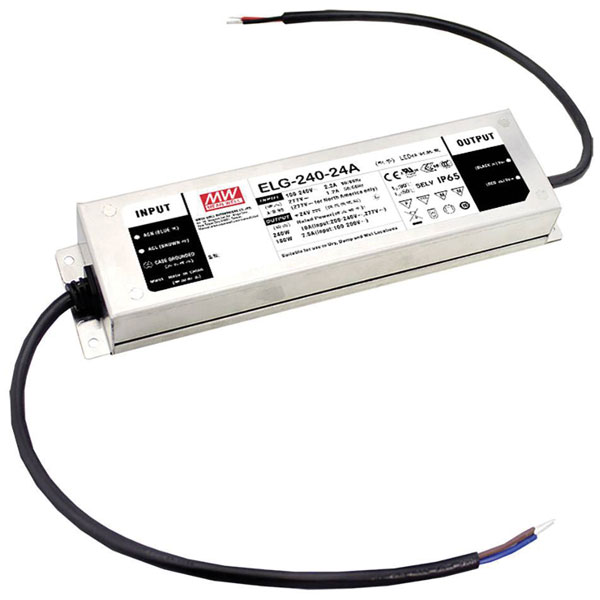

Mean Well ELG-240-24AB-3Y ELG series LED driver 240W dimmable surge-protected
Mean Well ELG-240-24AB-3Y ELG series LED driver 240W dimmable surge-protected
Standard range
Order code: 05-0485
MPN: ELG-240-24AB-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £49.85
Price per unit Ex VAT 		IP65 10A 240W +90°C Constant voltage 10A 5A 25.6V DC 22.4V DC 240 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-36AB-3Y ELG LED driver 240W dimmable adjustable outdoor
Mean Well ELG-240-36AB-3Y ELG LED driver 240W dimmable adjustable outdoor
Standard range
Order code: 05-0488
MPN: ELG-240-36AB-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £46.92
Price per unit Ex VAT 		IP65 6.66A 239.76W +90°C Constant voltage 6.66A 3.33A 38.5V DC 33.5V DC 239.76 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-42AB-3Y LED driver 240W 39-45V DC dimmable outdoor
Mean Well ELG-240-42AB-3Y LED driver 240W 39-45V DC dimmable outdoor
Standard range
Order code: 05-0489
MPN: ELG-240-42AB-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £46.92
Price per unit Ex VAT 		IP65 5.71A 239.82W +90°C Constant voltage 5.71A 2.86A 45V DC 39V DC 239.82 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-48AB-3Y LED driver 240W dimmable outdoor use
Mean Well ELG-240-48AB-3Y LED driver 240W dimmable outdoor use
Standard range
Order code: 05-0492
MPN: ELG-240-48AB-3Y

10 in stock, despatched in 4 working days
1+ £54.87
Price per unit Ex VAT 		IP65 5A 240W +90°C Constant voltage 5A 2.5A 51.2V DC 44.8V DC 240 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-54AB-3Y LED driver 240.3W dimmable outdoor use
Mean Well ELG-240-54AB-3Y LED driver 240.3W dimmable outdoor use
Standard range
Order code: 05-0496
MPN: ELG-240-54AB-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £46.92
Price per unit Ex VAT 		IP65 4.45A 240.3W +90°C Constant voltage 4.45A 2.23A 57V DC 50V DC 240.3 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-C1400B-3Y LED driver 239.4W 1400mA dimmable outdoor
Mean Well ELG-240-C1400B-3Y LED driver 239.4W 1400mA dimmable outdoor
Standard range
Order code: 05-0497
MPN: ELG-240-C1400B-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £49.08
Price per unit Ex VAT 		IP67 1400mA 239.4W +85°C Constant current 1.4A 171V DC 86V DC 239.4 W (max) I CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-C1750B-3Y ELG series LED driver 239.75W 3-in-1 dimmer
Mean Well ELG-240-C1750B-3Y ELG series LED driver 239.75W 3-in-1 dimmer
Standard range
Order code: 05-0498
MPN: ELG-240-C1750B-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £49.08
Price per unit Ex VAT 		IP67 1750mA 239.75W +85°C Constant current 1.75A 137V DC 69V DC 239.75 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-C2100B-3Y ELG series LED driver 241.5W 2100mA dimmable
Mean Well ELG-240-C2100B-3Y ELG series LED driver 241.5W 2100mA dimmable
Standard range
Order code: 05-0499
MPN: ELG-240-C2100B-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £46.19
Price per unit Ex VAT 		IP67 2100mA 241.5W +85°C Constant current 2.1A 115V DC 57V DC 241.5 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-240-C2100DA-3Y ELG LED driver 241.5W 2100mA dimmable DALI
Mean Well ELG-240-C2100DA-3Y ELG LED driver 241.5W 2100mA dimmable DALI
Standard range
Order code: 05-0501
MPN: ELG-240-C2100DA-3Y

Available to back orderBack-order availability date - 24/11/2025
1+ £49.60
Price per unit Ex VAT 		IP67 2100mA 241.5W +85°C Constant current 2.1A 115V DC 57V DC 241.5 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
