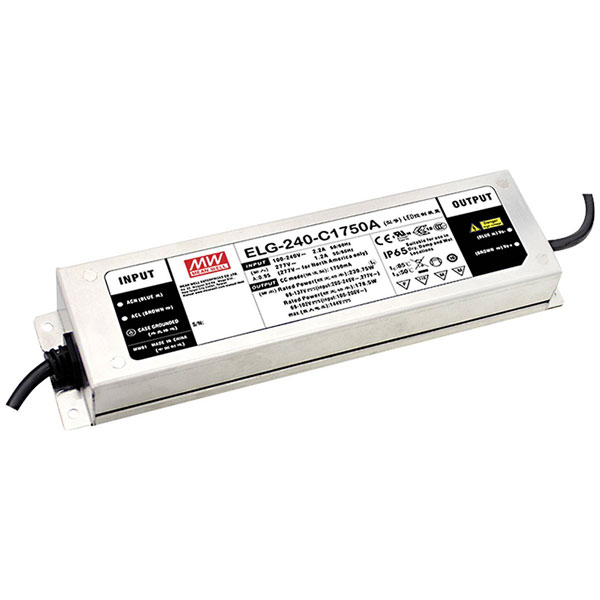

Mean Well ELG-240-C1750B-3Y ELG series LED driver 239.75W 3-in-1 dimmer

Mean Well
Order Code:

05-0498

Brand: Mean Well MPN: ELG-240-C1750B-3Y EAN-13: 4021087037761
Qty Was Unit Price (Ex VAT)
1+ £58.42 £49.08
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

The Mean Well ELG-240-C1750B-3Y LED driver provides a constant current of 1750 mA and operates between 69 and 137 V DC. It features a 3-in-1 dimmer with surge protection and is suitable for outdoor use, including on flammable surfaces and furniture. This LED driver is ideal for powering LED strips and other lighting solutions, offering reliable performance with overvoltage protection.
Type LED driver
Connection Open end cable
Dim (L x W x H) 244 x 71 x 37.5 mm
Factory colour Metal
Height 37.5mm
IP Rating IP67
Length 244mm
Max. output current 1750mA
Max. power 239.75W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 1.75A
Output voltage (max.) 137V DC
Output voltage (min.) 69V DC
Power range 239.75 W (max)
Test mark CE, CB, MM, UL, ENEC
Width 71mm
