Mean Well LED Drivers LED driver 608159

Mean Well Brand: Mean Well

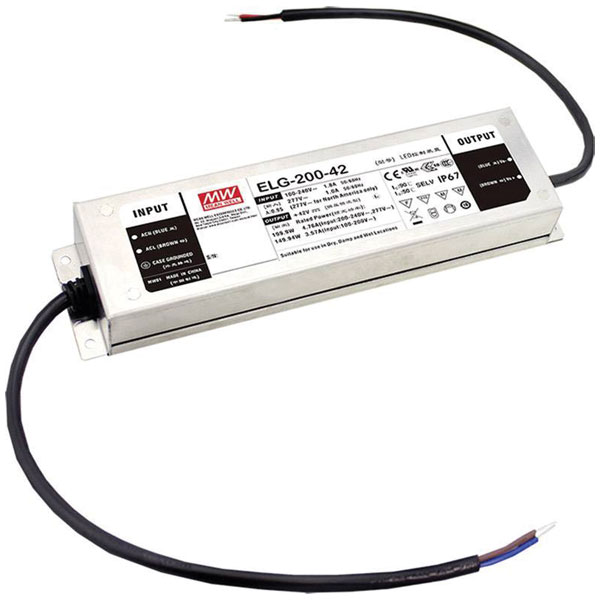

The Mean Well ELG series consists of dimmable LED drivers designed for outdoor use, catering to various power requirements and ensuring reliable performance across diverse lighting applications.
Description Image Product Buy Pricing (Ex VAT) IP Rating Max. output current Max. power Max. temperature Misc Attribute 1 Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Power range Protection Class Test mark Type Connection Dim Factory colour Height Length Min. temperature Misc Attribute 2
Mean Well ELG-200-12AB-3Y ELG LED driver 192W dimmable outdoor use
Mean Well ELG-200-12AB-3Y ELG LED driver 192W dimmable outdoor use
Standard range
Order code: 05-0471
MPN: ELG-200-12AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £47.00
Price per unit Ex VAT 		IP65 16A 192W +90°C Constant voltage 16A 8A 12.8V DC 11.2V DC 192 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-24AB-3Y LED driver 201.6W dimmable outdoor use
Mean Well ELG-200-24AB-3Y LED driver 201.6W dimmable outdoor use
Standard range
Order code: 05-0474
MPN: ELG-200-24AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £42.86
Price per unit Ex VAT 		IP65 8.4A 201.6W +90°C Constant voltage 8.4A 4.2A 25.6V DC 22.4V DC 201.6 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-42AB-3Y LED driver dimmable 199.9W outdoor use
Mean Well ELG-200-42AB-3Y LED driver dimmable 199.9W outdoor use
Standard range
Order code: 05-0476
MPN: ELG-200-42AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £55.73
Price per unit Ex VAT 		IP65 4.76A 199.9W +90°C Constant voltage 4.76A 2.38A 45V DC 39V DC 199.9 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-48AB-3Y LED driver 200W dimmable for outdoor use
Mean Well ELG-200-48AB-3Y LED driver 200W dimmable for outdoor use
Standard range
Order code: 05-0477
MPN: ELG-200-48AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £44.24
Price per unit Ex VAT 		IP65 4.16A 199.68W +90°C Constant voltage 4.16A 2.08A 51.2V DC 44.8V DC 199.68 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-54AB-3Y ELG series LED driver 200W dimmable IP-rated
Mean Well ELG-200-54AB-3Y ELG series LED driver 200W dimmable IP-rated
Standard range
Order code: 05-0478
MPN: ELG-200-54AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £44.24
Price per unit Ex VAT 		IP65 3.72A 200.88W +90°C Constant voltage 3.72A 1.86A 57V DC 50V DC 200.88 W (max) I SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-C1400B-3Y ELG series LED driver 198.9W 1400mA dimmable
Mean Well ELG-200-C1400B-3Y ELG series LED driver 198.9W 1400mA dimmable
Standard range
Order code: 05-0479
MPN: ELG-200-C1400B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £43.39
Price per unit Ex VAT 		IP67 1400mA 198.9W +85°C Constant current 1.4A 142V DC 71V DC 198.9 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-C1750B-3Y ELG LED driver 199.5W 57-114V dimmable
Mean Well ELG-200-C1750B-3Y ELG LED driver 199.5W 57-114V dimmable
Standard range
Order code: 05-0480
MPN: ELG-200-C1750B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £43.39
Price per unit Ex VAT 		IP67 1750mA 199.5W +85°C Constant current 1.75A 114V DC 57V DC 199.5 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-C2100B-3Y ELG LED driver 2100mA 48-96V dimmable outdoor
Mean Well ELG-200-C2100B-3Y ELG LED driver 2100mA 48-96V dimmable outdoor
Standard range
Order code: 05-0481
MPN: ELG-200-C2100B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £43.39
Price per unit Ex VAT 		IP67 2100mA 2100W +85°C Constant current 2.1A 96V DC 48V DC 2100 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
Mean Well ELG-200-C2100DA-3Y elg series led driver 201.6w dimmable DALI
Mean Well ELG-200-C2100DA-3Y elg series led driver 201.6w dimmable DALI
Standard range
Order code: 05-0482
MPN: ELG-200-C2100DA-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £49.85
Price per unit Ex VAT 		IP67 2100mA 201.6W +85°C Constant current 2.1A 96V DC 48V DC 201.6 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 244 x 71 x 37.5 mm Metal 37.5mm 244mm -40°C Pulsed
