Elmeko Thermal Management Fans Fan and filter 624596

Elmeko Brand: Elmeko

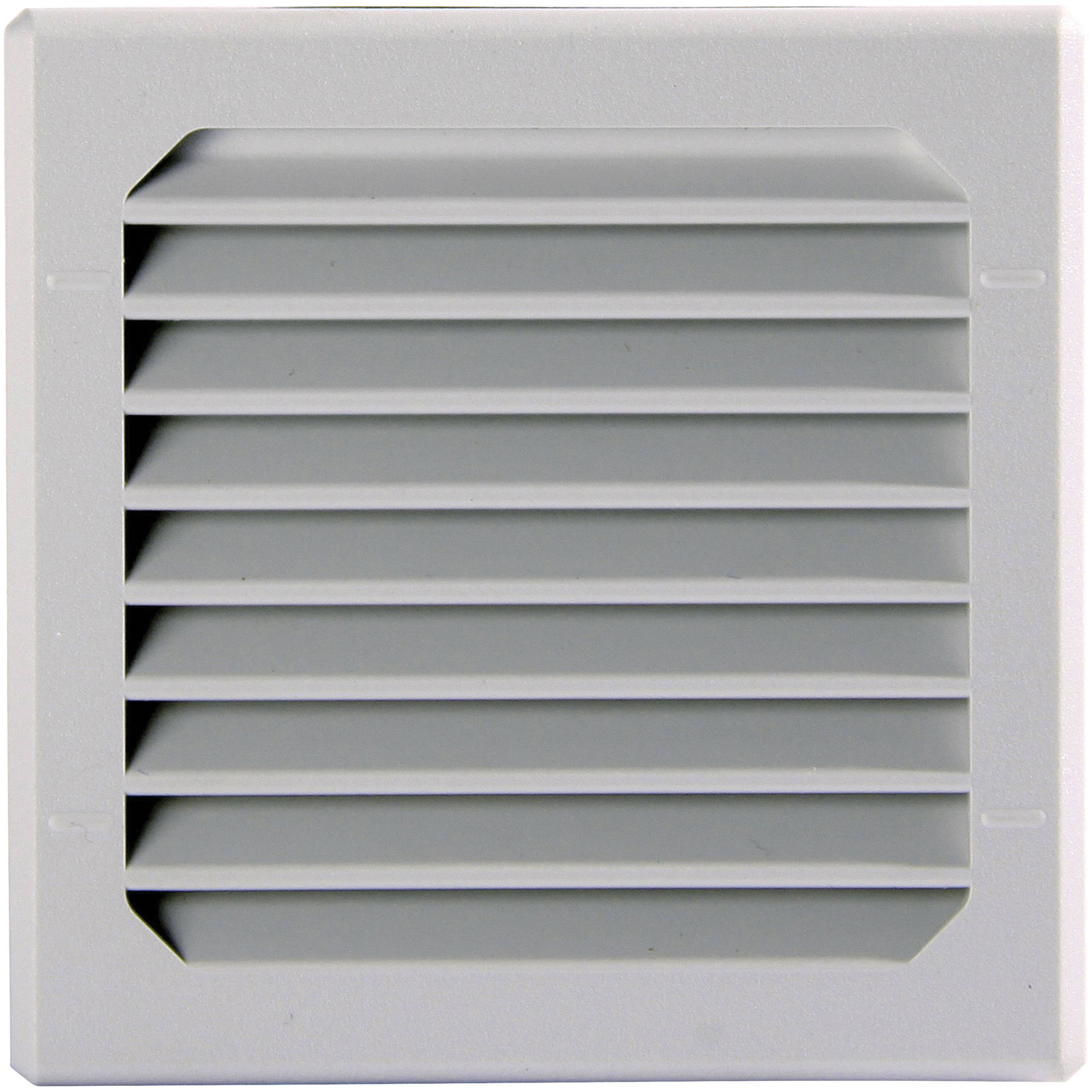

The Elmeko fan and filter units are compact ventilation solutions available in various voltage and power configurations, suitable for diverse electrical applications.
Description Image Product Buy Pricing (Ex VAT) Voltage Dimensions Air Flow Noise Power (W) Depth Height Lifespan Max. current consumption Max. temperature Min. temperature Misc Attribute Rotational speed Width Type Colour Connection IP Rating
Elmeko 10 080 150 LV 80 Fan and Filter 230V AC 5W 80x80x44.5mm
Elmeko 10 080 150 LV 80 Fan and Filter 230V AC 5W 80x80x44.5mm
Standard range
Order code: 09-0175
MPN: 10 080 150

6 in stock, despatched in 4 working days
1+ £64.62
Price per unit Ex VAT 		230V AC (W x H x D) 80 x 80 x 44.5 mm 11m³/h 28dBA 5W 44.5mm 80mm 40000h 42mA +65°C -20°C LV 80 230V AC 3100 U/min 80mm Fan and filter Light grey Screw terminal IP54
Elmeko 10 080 550 LV 80 Fan and Filter 24V DC 2.6W 80x80x44.5mm 1piece
Elmeko 10 080 550 LV 80 Fan and Filter 24V DC 2.6W 80x80x44.5mm 1piece
Standard range
Order code: 09-0176
MPN: 10 080 550

27 in stock, despatched in 4 working days
1+ £49.78
Price per unit Ex VAT 		24V DC (W x H x D) 80 x 80 x 44.5 mm 15m³/h 42.3dBA 2.6W 44.5mm 80mm 70000h 120mA +65°C -20°C LV 80 24V DC 5600 U/min 80mm Fan and filter Light grey Screw terminal IP54
Elmeko 10085550 LV 85 Fan and Filter 24V DC 3W 80x80x44.5mm
Elmeko 10085550 LV 85 Fan and Filter 24V DC 3W 80x80x44.5mm
Standard range
Order code: 09-0177
MPN: 10 085 550

6 in stock, despatched in 4 working days
1+ £52.34
Price per unit Ex VAT 		24V DC (W x H x D) 80 x 80 x 44.5 mm 20m³/h 48.5dBA 3W 44.5mm 80mm 60000h 130mA +65°C -20°C LV 85 24V DC 6850 U/min 80mm Fan and filter Light grey Screw terminal IP54
Elmeko 10 115 150 LV 100 Fan & Filter 230V AC 12W 105x105x59.5mm
Elmeko 10 115 150 LV 100 Fan & Filter 230V AC 12W 105x105x59.5mm
Standard range
Order code: 09-0178
MPN: 10 115 150

26 in stock, despatched in 4 working days
1+ £57.44
Price per unit Ex VAT 		230V AC (W x H x D) 105 x 105 x 59.5 mm 25m³/h 30dBA 12W 59.5mm 105mm 37500h 70mA +55°C -10°C LV 100 230V AC 3200 U/min 105mm Fan and filter Light grey Screw terminal IP54
Elmeko 10 115 550 LV 100 Fan and Filter 24V DC 2.2W 105x105x59.5mm
Elmeko 10 115 550 LV 100 Fan and Filter 24V DC 2.2W 105x105x59.5mm
Extended range
Order code: 09-0179
MPN: 10 115 550

Available to back orderBack order, lead time 9 weeks
1+ £57.44
Price per unit Ex VAT 		24V DC (W x H x D) 105 x 105 x 59.5 mm 28m³/h 36dBA 2.2W 59.5mm 105mm 70000h 100mA +65°C -20°C LV 100 24V DC 3300 U/min 105mm Fan and filter Light grey Screw terminal IP54
Elmeko 10 235 150 LV 200 230V AC Fan & Filter 20W 130x130x77mm
Elmeko 10 235 150 LV 200 230V AC Fan & Filter 20W 130x130x77mm
Standard range
Order code: 09-0180
MPN: 10 235 150

18 in stock, despatched in 4 working days
1+ £80.84
Price per unit Ex VAT 		230V AC (W x H x D) 130 x 130 x 77 mm 58m³/h 42dBA 20W 77mm 130mm 27500h 0.11A +55°C -10°C LV 200 230V AC 3100 U/min 130mm Fan and filter Light grey Screw terminal IP54
Elmeko LV 250 10 253 150 Fan and Filter 230V AC 20W 148x148x70mm
Elmeko LV 250 10 253 150 Fan and Filter 230V AC 20W 148x148x70mm
Standard range
Order code: 09-0181
MPN: 10 253 150

7 in stock, despatched in 4 working days
1+ £80.14
Price per unit Ex VAT 		230V AC (W x H x D) 148 x 148 x 70 mm 63m³/h 42dBA 20W 70mm 148mm 27500h 0.11A +55°C -10°C LV 250 230V AC 3100 U/min 148mm Fan and filter Light grey Screw terminal IP54
Elmeko 10335150 LV 300 Fan and Filter 230V AC 204x204x96mm 20W
Elmeko 10335150 LV 300 Fan and Filter 230V AC 204x204x96mm 20W
Standard range
Order code: 09-0182
MPN: 10 335 150

14 in stock, despatched in 4 working days
1+ £95.67
Price per unit Ex VAT 		230V AC (W x H x D) 204 x 204 x 96 mm 115m³/h 51dBA 20W 96mm 204mm 27500h 0.11A +55°C -10°C LV 300 230V AC 3100 U/min 204mm Fan and filter Light grey Screw terminal IP54
Elmeko 10 413 150 Fan and Filter 230V AC 45W 250x250x126mm 1piece
Elmeko 10 413 150 Fan and Filter 230V AC 45W 250x250x126mm 1piece
Standard range
Order code: 09-0183
MPN: 10 413 150

19 in stock, despatched in 4 working days
1+ £116.96
Price per unit Ex VAT 		230V AC (W x H x D) 250 x 250 x 126 mm 250m³/h 52dBA 45W 126mm 250mm 40000h 0.3A +55°C -10°C LV 410 230V AC 3030 U/min 250mm Fan and filter Light grey Screw terminal IP54
Elmeko 10 735 150 LV 700 Fan and Filter 230V AC 175W 323x323x168.5mm
Elmeko 10 735 150 LV 700 Fan and Filter 230V AC 175W 323x323x168.5mm
Standard range
Order code: 09-0184
MPN: 10 735 150

20 in stock, despatched in 4 working days
1+ £171.87
Price per unit Ex VAT 		230V AC (W x H x D) 323 x 323 x 168.5 mm 730m³/h 70dBA 175W 168.5mm 323mm 40000h 0.74A +55°C -10°C LV 700 230V AC 2750 U/min 323mm Fan and filter Light grey Screw terminal IP54
