Elmeko 10 115 550 LV 100 Fan and Filter 24V DC 2.2W 105x105x59.5mm

Elmeko
Standard range
Order Code:

09-0179

Brand: Elmeko MPN: 10 115 550 EAN-13: 4251218600582
Qty Unit Price (Ex VAT)
1+ £57.44
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

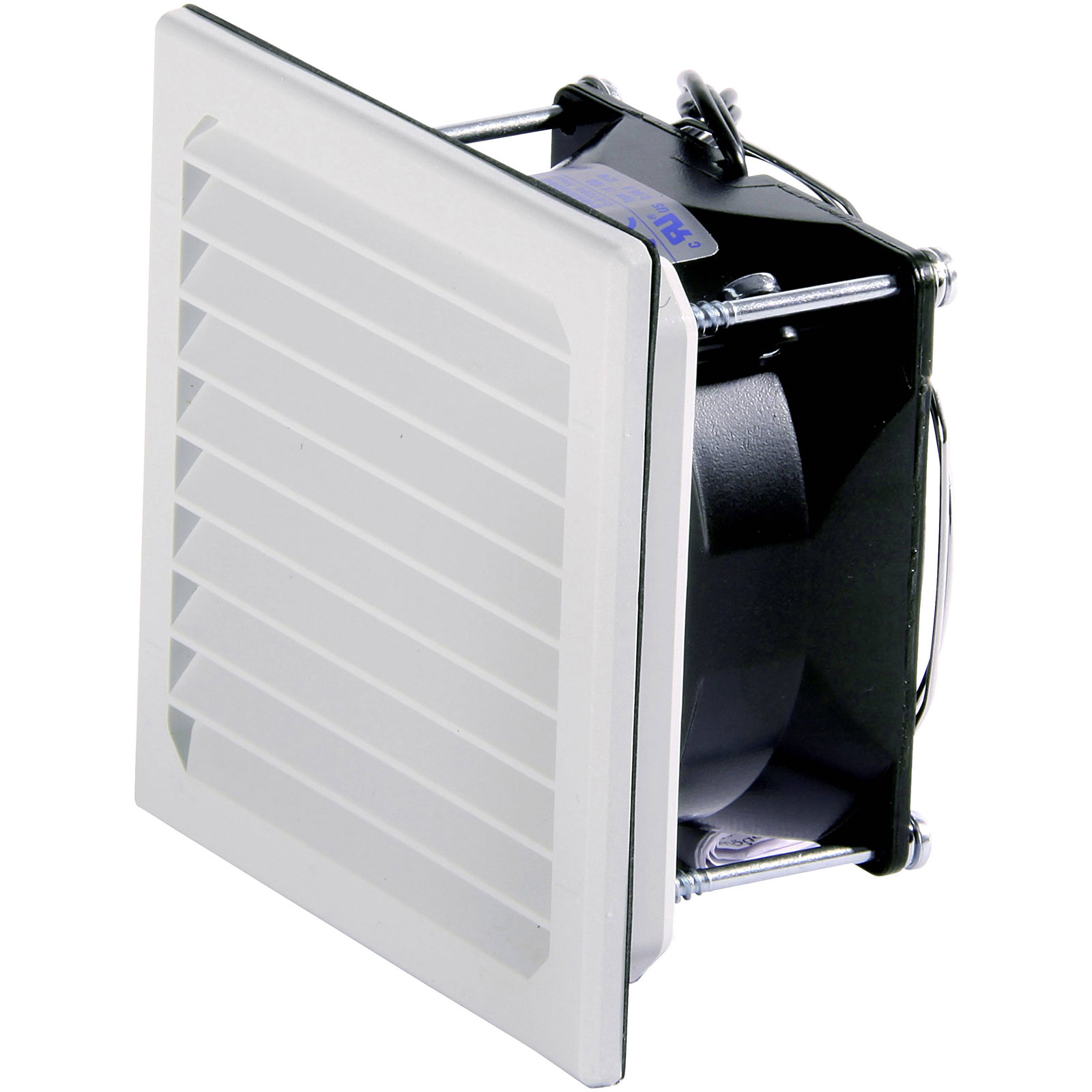

The Elmeko LV 100 24V DC is a fan and filter unit designed for electrical enclosure and switchboard ventilation. It operates at 24 V DC with a power consumption of 2.2 W and is compact with dimensions of 105 x 105 x 59.5 mm. This product is ideal for switchboard temperature control in various industrial applications.
Type Fan and filter
Air flow rate 28m³/h
Connection Screw terminal
Depth 59.5mm
Dim (W x H x D) 105 x 105 x 59.5 mm
Factory colour Light grey
Height 105mm
IP rating IP54
Lifespan 70000h
Max. current consumption 100mA
Max. temperature +65°C
Min. temperature -20°C
Misc Attribute LV 100 24V DC
Noise emission (max.) 36dBA
Operating voltage 24V DC
Power 2.2W
Rotational speed 3300 U/min
Width 105mm
