Vogt Verbindungstechnik Circular Contacts Pin terminal 630003

Vogt Verbindungstechnik Brand: Vogt Verbindungstechnik

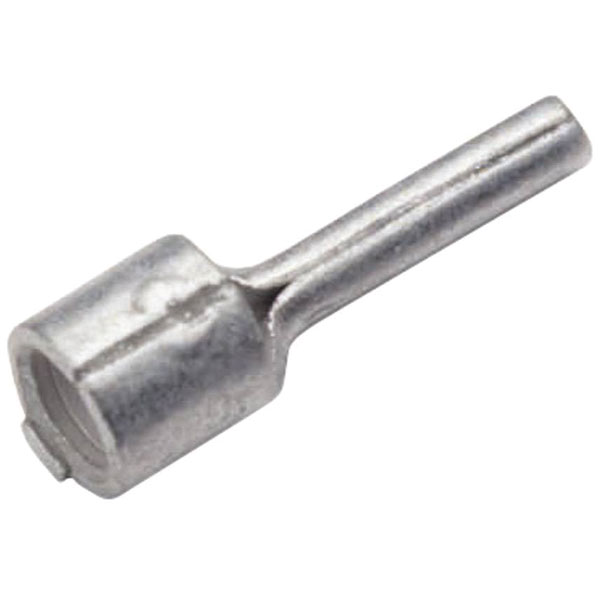

Vogt connection technology produces a range of uninsulated metal pin terminals catering to various wire size specifications.
Description Image Product Buy Qty Pricing (Ex VAT) Crimp area (max.) Cross section Cross-section range Dim Dimensions Factory colour Insulation Insulation material Insulation type Manufacturer part # Material (details) max. cross section Min. cross section Misc Attribute Pin length Pin Ø Standards Temperature range Type Contact material
Vogt 3739 Pin Terminal 0.10-0.50 mm² Not Insulated Metal 1 piece
Vogt 3739 Pin Terminal 0.10-0.50 mm² Not Insulated Metal 1 piece
Standard range
Order code: 13-3826
MPN: 3739

511 in stock, despatched in 4 working days
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		0.50mm² 1 - 5 Nmm² 0.10 - 0.50 mm² (D2 x L x L1) 1.4 x 14 x 8 mm (D2 x L x L1) 1.4 x 14 x 8 mm Metal Not insulated 3739 Tinned electrolytic copper 0.50mm² 0.10mm² 3739 8mm 1.4mm DIN 46230/ UL-No. E235797 - +125°C Pin terminal Cathode copper, tin plated
Vogt Connection Technology 3740L Pin Terminal 0.50-1mm² Metal Uninsulated
Vogt Connection Technology 3740L Pin Terminal 0.50-1mm² Metal Uninsulated
Standard range
Order code: 13-3827
MPN: 3740L

454 in stock, despatched in 4 working days
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		1mm² 0.5 - 1mm² 0.50 - 1 mm² (D2 x L x L1) 1.9 x 17 x 10 mm (D2 x L x L1) 1.9 x 17 x 10 mm Metal Not insulated 3740L Tinned electrolytic copper 1mm² 0.50mm² 3740L 10mm 1.9mm DIN 46230/ UL-No. E235797 - +125°C Pin terminal Cathode copper, tin plated
Vogt Connection Technology 3741L Pin Terminal 1.50-2.50mm² Not Insulated Metal
Vogt Connection Technology 3741L Pin Terminal 1.50-2.50mm² Not Insulated Metal
Standard range
Order code: 13-3828
MPN: 3741L

255 in stock, despatched in 4 working days
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		2.50mm² 1.5 - 2.5mm² 1.50 - 2.50 mm² (D2 x L x L1) 1.9 x 22 x 15 mm (D2 x L x L1) 1.9 x 22 x 15 mm Metal Not insulated 3741L Tinned electrolytic copper 2.50mm² 1.50mm² 3741L 15mm 1.9mm DIN 46230/ UL-No. E235797 - +125°C Pin terminal Cathode copper, tin plated
Vogt 3742 Pin Terminal 4/6mm² Metal 1 piece Not Insulated
Vogt 3742 Pin Terminal 4/6mm² Metal 1 piece Not Insulated
Standard range
Order code: 13-3829
MPN: 3742

458 in stock, despatched in 4 working days
1+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		6mm² 4 - 6mm² 4 - 6 mm² (D2 x L x L1) 2.7 x 20 x 10 mm (D2 x L x L1) 2.7 x 20 x 10 mm Metal Not insulated 3742 Tinned electrolytic copper 6mm² 4mm² 3742 10mm 2.7mm DIN 46230/ UL-No. E235797 - +125°C Pin terminal Cathode copper, tin plated
Vogt 3743 Pin Terminal 10mm² Not Insulated Metal 1 piece
Vogt 3743 Pin Terminal 10mm² Not Insulated Metal 1 piece
Standard range
Order code: 13-3830
MPN: 3743

902 in stock, despatched in 4 working days
1+ £0.396
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		10mm² 10mm² 10 mm² (max) (D2 x L x L1) 4.5 x 22 x 12 mm (D2 x L x L1) 4.5 x 22 x 12 mm Metal Not insulated 3743 Tinned electrolytic copper 10mm² 3743 12mm 4.5mm DIN 46230/ UL-No. E235797 - +125°C Pin terminal Cathode copper, tin plated
Vogt Connection Technology 3744 Pin Terminal 16mm² Not Insulated Metal
Vogt Connection Technology 3744 Pin Terminal 16mm² Not Insulated Metal
Standard range
Order code: 13-3831
MPN: 3744

611 in stock, despatched in 4 working days
1+ £0.514
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		16mm² 16mm² 16 mm² (max) (D2 x L x L1) 5.8 x 26 x 13 mm (D2 x L x L1) 5.8 x 26 x 13 mm Metal Not insulated 3744 Tinned electrolytic copper 16mm² 3744 13mm 5.8mm DIN 46230/ UL-No. E235797 - +125°C Pin terminal Cathode copper, tin plated
Vogt Connection Technology 3747L Pin Terminal 0.50-1.0 mm² Red Insulated
Vogt Connection Technology 3747L Pin Terminal 0.50-1.0 mm² Red Insulated
Standard range
Order code: 13-3832
MPN: 3747L

218 in stock, despatched in 4 working days
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		1.0mm² 0.5 - 1.0mm² 0.50 - 1.0 mm² Red PVC PVC Partially insulated 3747L Pin: Tinned electrolytic copper (E-CU) 1.0mm² 0.50mm² 3747L 10mm 1.9mm - 125°C Pin terminal Cathode copper, tin plated
Vogt Connection Technology 3748 Pin Terminal 1.50-2.50mm² Partially Ins Blue
Vogt Connection Technology 3748 Pin Terminal 1.50-2.50mm² Partially Ins Blue
Standard range
Order code: 13-3833
MPN: 3748

1,536 in stock, despatched in 4 working days
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		2.50mm² 1.5 - 2.5mm² 1.50 - 2.50 mm² Blue PVC PVC Partially insulated 3748 Pin: Tinned electrolytic copper (E-CU) 2.50mm² 1.50mm² 3748 10mm 1.9mm - 125°C Pin terminal Cathode copper, tin plated
Vogt 3749 Pin Terminal 4mm²-6mm² Partially Insulated Yellow
Vogt 3749 Pin Terminal 4mm²-6mm² Partially Insulated Yellow
Standard range
Order code: 13-3834
MPN: 3749

1,998 in stock, despatched in 4 working days
1+ £0.222
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		6mm² 4 - 6mm² 4 - 6 mm² Yellow PVC PVC Partially insulated 3749 Pin: Tinned electrolytic copper (E-CU) 6mm² 4mm² 3749 10mm 2.7mm - 125°C Pin terminal Cathode copper, tin plated
