Vogt Connection Technology 3744 Pin Terminal 16mm² Not Insulated Metal

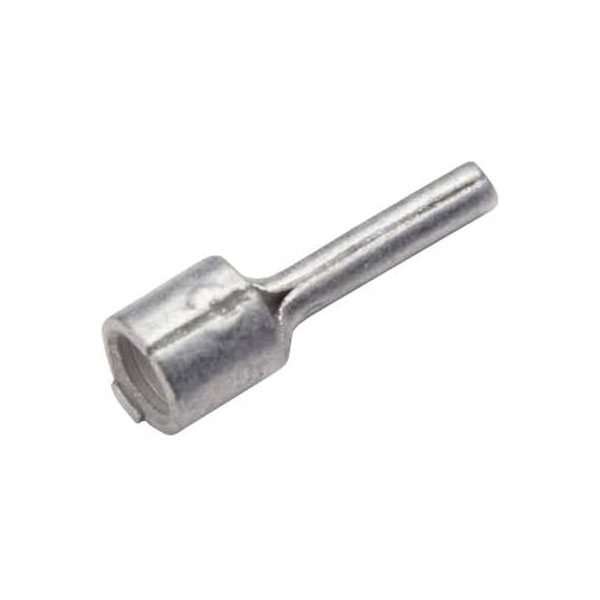

Image Representative of Range

Vogt Connection Technology 3744 Pin Terminal 16mm² Not Insulated Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3831

Brand: Vogt Verbindungstechnik MPN: 3744 EAN-13: 2050000233647
Qty Unit Price (Ex VAT)
1+ £0.514
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
611 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3744 pin terminal is a not insulated, metal crimp connector for 16 mm² cables. Its dimensions are 5.8x26x13mm, making it suitable for robust electrical connections. Typically used in industrial and electrical applications, it ensures secure wire terminations.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 16mm²
Cross section 16mm²
Cross-section range 16 mm² (max)
Dim (D2 x L x L1) 5.8 x 26 x 13 mm
Dimensions (D2 x L x L1) 5.8 x 26 x 13 mm
Factory colour Metal
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 16mm²
Pin length 13mm
Pin Ø 5.8mm
RoHS-compliant Yes
Standards DIN 46230/ UL-No. E235797
Support sleeve No
Temperature range - +125°C
