Vogt 3739 Pin Terminal 0.10-0.50 mm² Not Insulated Metal 1 piece

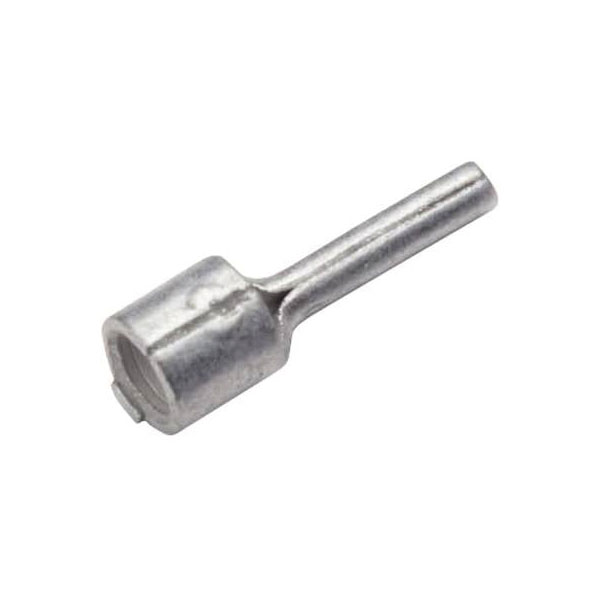

Image Representative of Range

Vogt 3739 Pin Terminal 0.10-0.50 mm² Not Insulated Metal 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-3826

Brand: Vogt Verbindungstechnik MPN: 3739 EAN-13: 2050000233388
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
271 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3739 pin terminal is a metal, uninsulated crimp connector designed for wire sizes between 0.10 mm² and 0.50 mm². With dimensions of 1.9mm x 14mm x 8mm, it typically serves applications requiring reliable electrical connections. This component is ideal for use in electronic assemblies and electrical equipment requiring robust terminations.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 0.50mm²
Cross section 1 - 5 Nmm²
Cross-section range 0.10 - 0.50 mm²
Dim (D2 x L x L1) 1.4 x 14 x 8 mm
Dimensions (D2 x L x L1) 1.4 x 14 x 8 mm
Factory colour Metal
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 0.50mm²
Min. cross section 0.10mm²
Pin length 8mm
Pin Ø 1.4mm
RoHS-compliant Yes
Standards DIN 46230/ UL-No. E235797
Support sleeve No
Temperature range - +125°C
