Vogt Connection Technology 3740L Pin Terminal 0.50-1mm² Metal Uninsulated

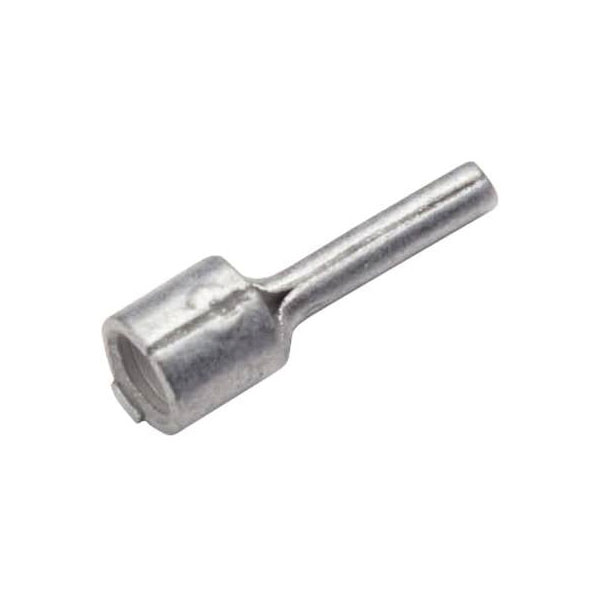

Image Representative of Range

Vogt Connection Technology 3740L Pin Terminal 0.50-1mm² Metal Uninsulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3827

Brand: Vogt Verbindungstechnik MPN: 3740L EAN-13: 2050000233432
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
404 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3740L pin terminal, which is a crimp connector suitable for wire sizes from 0.50 mm² to 1 mm². This metal pin terminal is not insulated and measures 1.9x17x10 mm, making it ideal for secure electrical connections in various applications. Typical uses include connecting electrical wires in telecommunications and consumer electronics.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 1mm²
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Dim (D2 x L x L1) 1.9 x 17 x 10 mm
Dimensions (D2 x L x L1) 1.9 x 17 x 10 mm
Factory colour Metal
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 1mm²
Min. cross section 0.50mm²
Pin length 10mm
Pin Ø 1.9mm
RoHS-compliant Yes
Standards DIN 46230/ UL-No. E235797
Support sleeve No
Temperature range - +125°C
