Vogt Connection Technology 3741L Pin Terminal 1.50-2.50mm² Not Insulated Metal

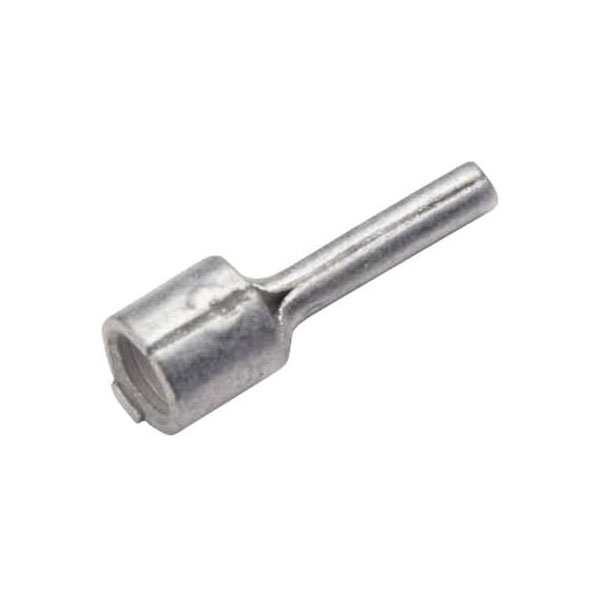

Image Representative of Range

Vogt Connection Technology 3741L Pin Terminal 1.50-2.50mm² Not Insulated Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3828

Brand: Vogt Verbindungstechnik MPN: 3741L EAN-13: 2050000233487
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
255 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3741L pin terminal is a non-insulated metal connector suitable for wire sizes between 1.50 mm² and 2.50 mm². It features a robust crimp design ideal for reliable electrical connections. Typical applications include use in various electronic or automotive systems requiring secure and efficient connections.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 2.50mm²
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Dim (D2 x L x L1) 1.9 x 22 x 15 mm
Dimensions (D2 x L x L1) 1.9 x 22 x 15 mm
Factory colour Metal
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 2.50mm²
Min. cross section 1.50mm²
Pin length 15mm
Pin Ø 1.9mm
RoHS-compliant Yes
Standards DIN 46230/ UL-No. E235797
Support sleeve No
Temperature range - +125°C
