Vogt 3742 Pin Terminal 4/6mm² Metal 1 piece Not Insulated

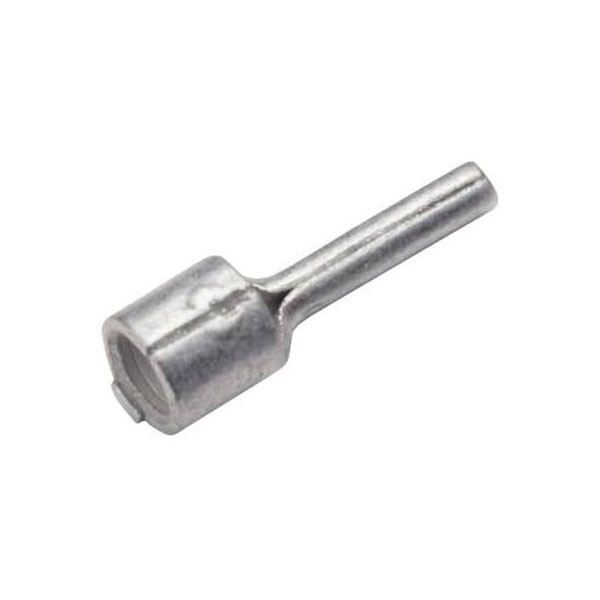

Image Representative of Range

Vogt 3742 Pin Terminal 4/6mm² Metal 1 piece Not Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3829

Brand: Vogt Verbindungstechnik MPN: 3742 EAN-13: 2050000233524
Qty Unit Price (Ex VAT)
1+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
458 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3742 pin terminal, which is a not insulated metal connector suitable for 4 mm² to 6 mm² wire sizes. Main attributes include its dimensions of 2.7x20x10mm and its use as a crimp connector. It is typically used in electrical applications for secure wire connections and efficient conduction.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 6mm²
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Dim (D2 x L x L1) 2.7 x 20 x 10 mm
Dimensions (D2 x L x L1) 2.7 x 20 x 10 mm
Factory colour Metal
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 6mm²
Min. cross section 4mm²
Pin length 10mm
Pin Ø 2.7mm
RoHS-compliant Yes
Standards DIN 46230/ UL-No. E235797
Support sleeve No
Temperature range - +125°C
