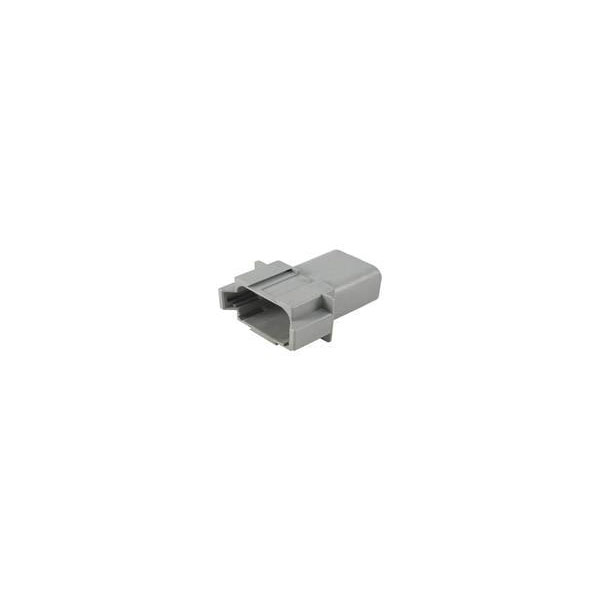

TE Connectivity Crimp Terminals Bullet connector 608534

The TE Connectivity DT Bullet Connector Plugs are versatile electrical connectors available in various configurations, offering a range of pin numbers to accommodate different wiring needs.
Description Image Product Buy Qty Pricing (Ex VAT) (Ø) Connector type Factory colour IP rating Length Max. temperature Min. temperature Nominal voltage Number of pins Total no. of pins AWG Cable Ø (max.) Cable Ø range Cable Ø up to Case material Connection Connection angle Cross-section range max. cross section Nominal current
TE Connectivity DT04-08PA DT Bullet Connector Plug 8 Pins Straight Housing
TE Connectivity DT04-08PA DT Bullet Connector Plug 8 Pins Straight Housing
Standard range
Order code: 07-5184
MPN: DT04-08PA

118 in stock, despatched in 4 working days
2+ £3.36
10+ £3.22
50+ £2.83
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Plug, straight Grey IP68 +80°C -25°C 250V AC 8 8 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT04-12PA DT Bullet Connector Plug Straight 12 Pins
TE Connectivity DT04-12PA DT Bullet Connector Plug Straight 12 Pins
Standard range
Order code: 07-5193
MPN: DT04-12PA

197 in stock, despatched in 4 working days
2+ £3.56
10+ £3.24
50+ £3.18
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Plug, straight Grey IP68 +80°C -25°C 250V AC 12 12 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT04-2P DT Bullet Plug 2 Pins Straight 1 pc Complete Set
TE Connectivity DT04-2P DT Bullet Plug 2 Pins Straight 1 pc Complete Set
Standard range
Order code: 07-5211
MPN: DT04-2P

902 in stock, despatched in 4 working days
5+ £1.17
25+ £1.07
100+ £0.966
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Plug, straight Grey IP68 43.38mm 250V 2 2 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT04-3P-C015 DT Bullet Connector Plug 3 Pins Straight
TE Connectivity DT04-3P-C015 DT Bullet Connector Plug 3 Pins Straight
Standard range
Order code: 07-5223
MPN: DT04-3P-C015

293 in stock, despatched in 4 working days
10+ £0.731
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Plug, straight Grey IP68 +85°C -40°C 1500V AC 3 3 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT04-4P DT Bullet Connector Plug Straight 4 Pins
TE Connectivity DT04-4P DT Bullet Connector Plug Straight 4 Pins
Standard range
Order code: 07-5237
MPN: DT04-4P

171 in stock, despatched in 4 working days
3+ £1.72
10+ £1.39
100+ £1.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Plug, straight Grey IP68 20.83mm +80°C -40°C 250V AC 4 4 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT04-6P DT Bullet Connector Plug Straight 6-Pin Housing
TE Connectivity DT04-6P DT Bullet Connector Plug Straight 6-Pin Housing
Standard range
Order code: 07-5246
MPN: DT04-6P

438 in stock, despatched in 4 working days
3+ £1.95
10+ £1.77
100+ £1.53
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1mm Plug, straight Grey IP68 1mm +80°C -25°C 250V AC 6 6 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT06-08SA DT Bullet Connector Socket 8 Pins Straight
TE Connectivity DT06-08SA DT Bullet Connector Socket 8 Pins Straight
Standard range
Order code: 07-5254
MPN: DT06-08SA

302 in stock, despatched in 4 working days
2+ £3.71
10+ £3.38
50+ £3.05
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Socket, straight Grey IP68 +80°C -25°C 250V AC 8 8 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT06-12SA DT Bullet Socket Connector 12-Pin Straight
TE Connectivity DT06-12SA DT Bullet Socket Connector 12-Pin Straight
Standard range
Order code: 07-5262
MPN: DT06-12SA

144 in stock, despatched in 4 working days
1+ £4.46
10+ £3.72
50+ £3.60
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Socket, straight Grey IP68 +80°C -25°C 250V AC 12 12 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT06-3S DT Bullet Connector 3-Pin Socket Straight
TE Connectivity DT06-3S DT Bullet Connector 3-Pin Socket Straight
Standard range
Order code: 07-5289
MPN: DT06-3S

113 in stock, despatched in 4 working days
5+ £0.980
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Socket, straight Grey IP68 18.23mm +80°C -25°C 250V 3 3 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
TE Connectivity DT06-6S-P012 DT Bullet Connector Socket 6-Pin Straight
TE Connectivity DT06-6S-P012 DT Bullet Connector Socket 6-Pin Straight
Standard range
Order code: 07-5324
MPN: DT06-6S-P012

228 in stock, despatched in 4 working days
2+ £2.19
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Socket, straight Black IP67 +85°C -40°C 1500V AC 6 6 20 - 14 3.68mm 1.35 - 3.68 mm 1.35mm Thermoplastic material Crimp 180° 2 mm² (max) 2mm² 13A
