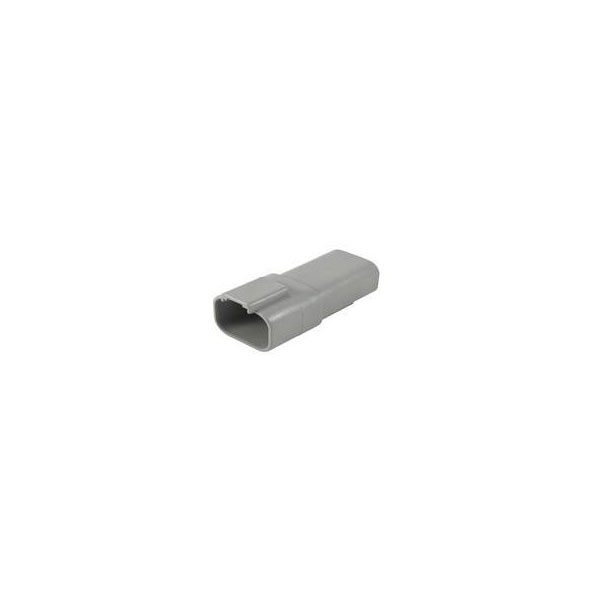

TE Connectivity DT04-4P DT Bullet Connector Plug Straight 4 Pins

TE Connectivity
Order Code:

07-5237

Brand: TE Connectivity MPN: DT04-4P EAN-13: 2050003846547
Qty Unit Price (Ex VAT)
3+ £2.73
10+ £2.48
100+ £2.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
298 in stock, despatched in 4 working days

The TE Connectivity DT04-4P is a female shrouded connector with four-way terminals.

It offers robust performance with environmentally sealed housing for durability.

Typically used in automotive applications, it ensures reliable electrical connections.

The DT04-4P is suitable for harsh environments, where secure connections are essential.


Type Bullet connector
AWG 20 - 14
Cable Ø (max.) 3.68mm
Cable Ø range 1.35 - 3.68 mm
Cable Ø up to 1.35mm
Case Material Thermoplastic material
Connection Crimp
Connection angle 180°
Connector Type Plug, straight
Cross-section range 2 mm² (max)
Factory colour Grey
IP Rating IP68
Length 20.83mm
max. cross section 2mm²
Max. temperature +80°C
Min. temperature -40°C
Nominal Current 13A
Nominal current - rounded value 13A
Nominal Voltage 250V AC
Number of Pins 4
Series DT
Total no. of pins 4
