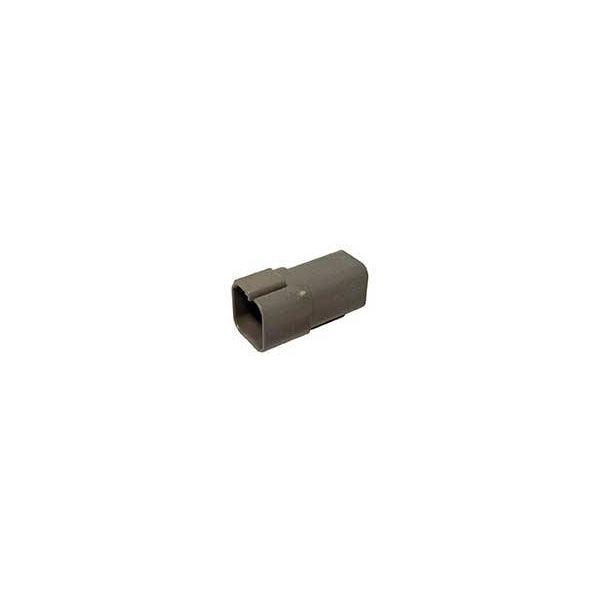

TE Connectivity DT04-6P DT Bullet Connector Plug Straight 6-Pin Housing

MPN: DT04-6P
Brand: TE Connectivity
EAN-13: 2050003846561
Order Code: 07-5246
Country of Origin: USA

RoHS Compliant
Free UK shipping available

View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
3+	£2.51
10+	£2.24
100+	£2.12

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 645 in stock

Product Details
Product Range
Data Sheets
Quick Quote

TE Connectivity's DT04-6P is a robust automotive connector known for its shrouded 6-way female connection.

This part offers high reliability with environmental sealing, making it ideal for harsh conditions.

It is commonly used in heavy-duty vehicles and equipment for secure electrical connections.

The connector ensures efficient performance in demanding automotive applications.

Type	Plug, straight
Number of Contacts	6
Gender	Female
(Ø)	1mm
Cable Ø (max.)	3.68mm
Cable Ø range	1.35 - 3.68mm
Cable Ø up to	1.35mm
Case Material	Thermoplastic material
Colour	Grey
Connection	Crimp
Connection Angle	180°
Contact Finish Termination	Nickel (Ni)
Contact Gender	MALE
Cross Section	2 mm² (max)
Current Rating	13A
Dielectric Withstanding Voltage	1500VAC
Insulator Color	BLACK
Insulator Material	THERMOPLASTIC
IP Rating	IP68
Length	1mm
max. cross section	2mm²
Maximum Operating Temperature	125
Maximum Temperature	+80°C
Min. temperature	-25°C
Minimum Operating Temperature	-55
Mounting Style	STRAIGHT
Nominal Voltage	250V AC
Number Of Connectors	ONE
Number of pins	6
Rated Current (Signal)	13
Reliability	COMMERCIAL
Series	DT
Termination Type	CRIMP
Total Number of Contacts	6
Wire Gauge (AWG)	20 - 14
