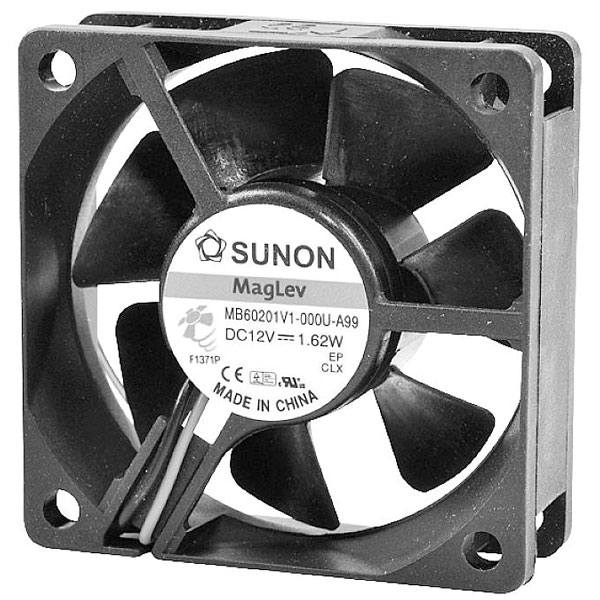

Sunon Thermal Management Fans Axial fan 619111

Sunon Brand: Sunon
This group of parts consists of Sunon axial fans, featuring compact 60x60x20mm dimensions and designed for use with a 12V DC power supply, produced for high-efficiency air movement in electronic cooling applications.
Description Image Product Buy Qty Pricing (Ex VAT) Air flow rate Dim Cable length Factory colour Height Connection Lifespan Max. current consumption Material Max. operating voltage Max. temperature Min. operating voltage Misc Attribute Noise emission (max.) Nominal voltage No. of wires Operating voltage Power Rotational speed Type of bearing
Sunon EE60201B1-999 Axial Fan 12V 60x60x20mm 39.06 m³/h 1pc
Sunon EE60201B1-999 Axial Fan 12V 60x60x20mm 39.06 m³/h 1pc
Standard range
Order code: 07-2302
MPN: EE60201B1-999

7 in stock, despatched in 4 working days
1+ £4.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		39.06m³/h (L x W x H) 60 x 60 x 20 mm Black 20mm 70000h 156mA PBT 13.8V 70°C 6V SUNON DC-Axiallüfter Serie MB/EB 60x60x20mm 34.5dB 12V 2 6 - 13.8 V 1.88W 4500 U/min Double ball bearing
Sunon EE60201S1-1000U-999 Axial Fan 12V DC 38.42m³/h 60x60x20mm
Sunon EE60201S1-1000U-999 Axial Fan 12V DC 38.42m³/h 60x60x20mm
Standard range
Order code: 07-2303
MPN: EE60201S1-1000U-999

Available to back orderBack order, lead time 1 day
1+ £2.47
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		38.42m³/h (L x W x H) 60 x 60 x 20 mm 20mm 35,000h 133mA 13.8V +70°C 4.5V EE60201S1-1000U-999 32.5dB 12V DC 4.5 - 13.8 V 1.6W 4700 U/min Plain bearing
Sunon EE60201S3-1000U-999 Axial Fan 12V DC 28.05m³/h 60x60x20mm
Sunon EE60201S3-1000U-999 Axial Fan 12V DC 28.05m³/h 60x60x20mm
Standard range
Order code: 07-2304
MPN: EE60201S3-1000U-999

49 in stock, despatched in 4 working days
1+ £2.61
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		28.05m³/h (L x W x H) 60 x 60 x 20 mm 20mm 60,000h 48mA 13.8V +70°C 4.5V EE60201S3-1000U-999 21dB 12V DC 4.5 - 13.8 V 0.58W 3100 U/min Plain bearing
Sunon EE60251B1-A99 Axial Fan 12V DC 60x60x25mm 39.91m³/h 1pc
Sunon EE60251B1-A99 Axial Fan 12V DC 60x60x25mm 39.91m³/h 1pc
Standard range
Order code: 07-2305
MPN: EE60251B1-A99

4 in stock, despatched same dayBack-order availability date - 24/05/2025
1+ £4.98
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		39.91m³/h (L x W x H) 60 x 60 x 25 mm 0.30m 25mm Open end cable 120mA 12V +70°C EE60251B1-A99 34.5dB 12V DC 12 V (max) 1.44W 4500 U/min Ball bearing
Sunon EE60251S1-1000-U999 Axial Fan 12V DC 60x60x25mm Compact Design
Sunon EE60251S1-1000-U999 Axial Fan 12V DC 60x60x25mm Compact Design
Standard range
Order code: 07-2306
MPN: EE60251S1-1000-U999

145 in stock, despatched in 4 working days
1+ £3.96
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		(L x W x H) 60 x 60 x 25 mm 25mm 141mA 13.8V 70°C 4.5V 171056 27dB 12V DC 4.5 - 13.8 V 1.56W 4500 U/min Plain bearing
Sunon EE60251S2-1000U-999 Axial Fan 12V DC 32.81m³/h 60x60x25mm
Sunon EE60251S2-1000U-999 Axial Fan 12V DC 32.81m³/h 60x60x25mm
Standard range
Order code: 07-2307
MPN: EE60251S2-1000U-999

Available to back orderBack order, lead time 1 day
1+ £2.86
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		32.81m³/h (L x W x H) 60 x 60 x 25 mm 25mm 98mA 13.8V +70°C 4.5V EE60251S2-1000U-999 22dB 12V DC 4.5 - 13.8 V 1.18W 3800 U/min Ball bearing
Sunon EE60251S3-1000-999 Axial Fan 12V DC 60x60x25mm 27.2m³/h 1pc
Sunon EE60251S3-1000-999 Axial Fan 12V DC 60x60x25mm 27.2m³/h 1pc
Standard range
Order code: 07-2308
MPN: EE60251S3-1000-999

24 in stock, despatched in 4 working days
1+ £2.44
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		27.2m³/h (L x W x H) 60 x 60 x 25 mm 25mm 35,000h 69mA 13.8V +70°C 4.5V 171229 16.7dB 12V DC 4.5 - 13.8 V 0.83W 3100 U/min Plain bearing
