Mean Well Open & DIN Power Supply Units Rail mounted DC/DC converter 608284

Mean Well Brand: Mean Well
The range of Mean Well rail DC/DC converters includes units designed for DIN rail mounting, providing various voltage and power outputs to meet diverse application needs.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Efficiency Input Voltage Input voltage (max.) Max. output current Min. input voltage Nominal Input Voltage Output current (max.) - rounded Output voltage (max.) Output voltage (min.) Output voltage (nominal) Power Connection Dim Height Length Type MTBF Number of Outputs Operating temperature (max.)
Mean Well DDR-120A-12 rail DC/DC converter DIN 12V 8.3A 99.6W 1 output
Mean Well DDR-120A-12 rail DC/DC converter DIN 12V 8.3A 99.6W 1 output
Standard range
Order code: 05-0266
MPN: DDR-120A-12

Available to back orderBack-order availability date - 12/12/2025
1+ £57.60
Price per unit Ex VAT 		12V DC 88.5% 9-18 V/DC 18V DC 8.3A 9V DC 12 V/DC 8.3A 14V DC 9V DC 12V DC 99.6W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120A-24 DC/DC converter 24V 4.2A 100.8W DIN rail mount
Mean Well DDR-120A-24 DC/DC converter 24V 4.2A 100.8W DIN rail mount
Standard range
Order code: 05-0267
MPN: DDR-120A-24

Available to back orderBack-order availability date - 12/12/2025
1+ £68.39
Price per unit Ex VAT 		24V DC 88.5% 9-18 V/DC 18V DC 4.2A 9V DC 12 V/DC 4.2A 28V DC 24V DC 24V DC 100.8W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120A-48 Rail DC/DC converter 48V 2.1A 100.8W 1 output
Mean Well DDR-120A-48 Rail DC/DC converter 48V 2.1A 100.8W 1 output
Standard range
Order code: 05-0268
MPN: DDR-120A-48

Available to back orderBack-order availability date - 12/12/2025
1+ £59.04
Price per unit Ex VAT 		48V DC 88.5% 9-18 V/DC 18V DC 2.1A 9V DC 12 V/DC 2.1A 56V DC 48V DC 48V DC 100.8W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120B-12 DC/DC rail converter 12V 10A 120W single output
Mean Well DDR-120B-12 DC/DC rail converter 12V 10A 120W single output
Standard range
Order code: 05-0269
MPN: DDR-120B-12

Available to back orderBack-order availability date - 12/12/2025
1+ £54.84
Price per unit Ex VAT 		12V DC 89% 16,8-33.6V DC 33.6V DC 10A 16.8V DC 24 V/DC 10A 14V DC 9V DC 12V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120B-24 rail DC/DC converter 24V 5A 120W DIN 1 output
Mean Well DDR-120B-24 rail DC/DC converter 24V 5A 120W DIN 1 output
Standard range
Order code: 05-0270
MPN: DDR-120B-24

Available to back orderBack-order availability date - 12/12/2025
1+ £62.39
Price per unit Ex VAT 		24V DC 89.5% 16,8-33.6V DC 33.6V DC 5A 16.8V DC 24 V/DC 5A 28V DC 24V DC 24V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120B-48 Rail DC/DC converter 48V 2.5A 120W 1 output
Mean Well DDR-120B-48 Rail DC/DC converter 48V 2.5A 120W 1 output
Standard range
Order code: 05-0271
MPN: DDR-120B-48

Available to back orderBack-order availability date - 12/12/2025
1+ £70.81
Price per unit Ex VAT 		48V DC 91% 16,8-33.6V DC 33.6V DC 2.5A 16.8V DC 24 V/DC 2.5A 56V DC 48V DC 48V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120C-12 DC/DC converter DIN Rail 12V 10A 120W 1 Output
Mean Well DDR-120C-12 DC/DC converter DIN Rail 12V 10A 120W 1 Output
Standard range
Order code: 05-0272
MPN: DDR-120C-12

Available to back orderBack-order availability date - 12/12/2025
1+ £58.33
5+ £56.58
10+ £54.84
Price per unit Ex VAT 		12V DC 89.5% 33,6-64,2V DC 67.2V DC 10A 33.6V DC 48 V/DC 10A 14V DC 9V DC 12V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120C-24 rail DC/DC converter DIN 24V DC 5A 120W 1 output
Mean Well DDR-120C-24 rail DC/DC converter DIN 24V DC 5A 120W 1 output
Standard range
Order code: 05-0273
MPN: DDR-120C-24

Available to back orderBack-order availability date - 12/12/2025
1+ £54.84
Price per unit Ex VAT 		24V DC 91% 33,6-64,2V DC 67.2V DC 5A 33.6V DC 48 V/DC 5A 28V DC 24V DC 24V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120C-48 Rail DC/DC converter 48V 2.5A 120W 1 output
Mean Well DDR-120C-48 Rail DC/DC converter 48V 2.5A 120W 1 output
Standard range
Order code: 05-0274
MPN: DDR-120C-48

Available to back orderBack-order availability date - 12/12/2025
1+ £54.84
Price per unit Ex VAT 		48V DC 92% 33,6-64,2V DC 67.2V DC 2.5A 33.6V DC 48 V/DC 2.5A 56V DC 48V DC 48V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C

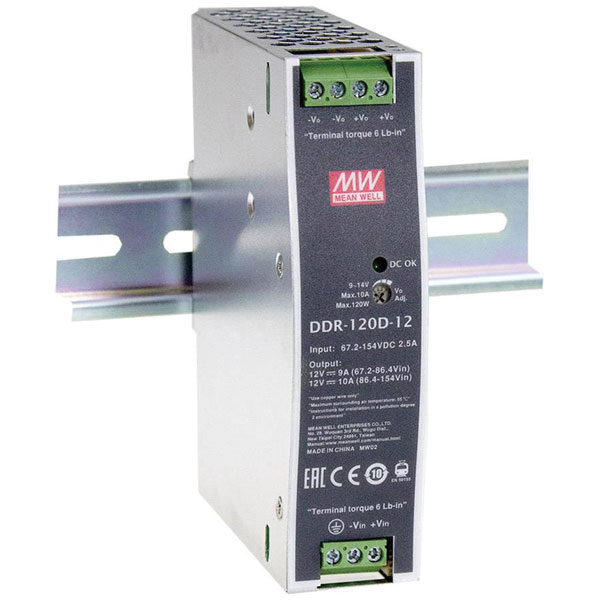

Mean Well DDR-120D-12 rail DC/DC converter 12V 10A 120W 1 output
Mean Well DDR-120D-12 rail DC/DC converter 12V 10A 120W 1 output
Standard range
Order code: 05-0275
MPN: DDR-120D-12

Available to back orderBack-order availability date - 12/12/2025
1+ £54.84
Price per unit Ex VAT 		12V DC 89.5% 67.2-154V DC 154V DC 10A 67.2V DC 10A 14V DC 9V DC 12V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120D-24 rail DC/DC converter 24V 5A 120W 1 output
Mean Well DDR-120D-24 rail DC/DC converter 24V 5A 120W 1 output
Standard range
Order code: 05-0276
MPN: DDR-120D-24

Available to back orderBack-order availability date - 12/12/2025
1+ £55.14
Price per unit Ex VAT 		24V DC 91% 67.2-154V DC 154V DC 5A 67.2V DC 5A 28V DC 24V DC 24V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
Mean Well DDR-120D-48 converter DIN rail 48VDC 2.5A 120W 1 output
Mean Well DDR-120D-48 converter DIN rail 48VDC 2.5A 120W 1 output
Standard range
Order code: 05-0277
MPN: DDR-120D-48

Available to back orderBack-order availability date - 12/12/2025
1+ £54.84
Price per unit Ex VAT 		48V DC 91.5% 67.2-154V DC 154V DC 2.5A 67.2V DC 2.5A 56V DC 48V DC 48V DC 120W Clamp (L x W x H) 32 x 102 x 125.2 mm 125.2mm 32mm Rail mounted DC/DC converter (DIN) 214600h 1 +70°C
