Mean Well Open & DIN Power Supply Units AC/DC PSU (print) 608207

Mean Well Brand: Mean Well
The Mean Well series includes compact, low-power AC/DC power supply units designed for energy efficiency, with various voltage and current specifications.
Description Image Product Buy Pricing (Ex VAT) Connection Efficiency to Max. output current Output current (max.) - rounded Output voltage (max.) Residual ripple Consumption (standby) Dim Height Input Frequency Input voltage (max.) Length Min. input voltage Number of Outputs Operating Temperature Operating temperature (max.) Operating temperature (min.) Power Protection Class Tolerance (output voltage)

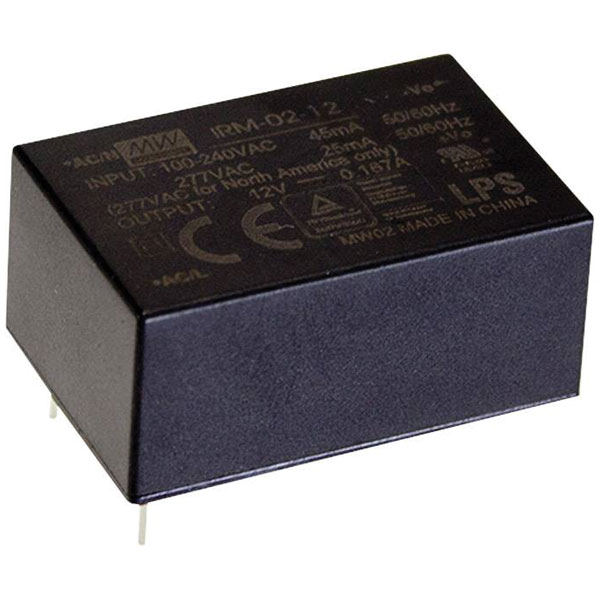

Mean Well IRM-02-12S IRM-02 AC/DC PSU 12V DC 167mA 2W compact low-power
Mean Well IRM-02-12S IRM-02 AC/DC PSU 12V DC 167mA 2W compact low-power
Standard range
Order code: 05-0915
MPN: IRM-02-12S

Available to back orderBack-order availability date - 12/12/2025
1+ £5.47
5+ £5.31
10+ £5.15
25+ £5.08
50+ £5.00
Price per unit Ex VAT 		SMD 74% 167mA 167mA 12V DC 150 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-15 series AC/DC PSU 15V 133mA low power compact size
Mean Well IRM-02-15 series AC/DC PSU 15V 133mA low power compact size
Standard range
Order code: 05-0916
MPN: IRM-02-15

Available to back orderBack-order availability date - 12/12/2025
1+ £5.79
5+ £5.61
10+ £5.43
25+ £5.35
50+ £5.27
Price per unit Ex VAT 		Pins 75% 133mA 133mA 15V DC 200 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-24S PSU 24V DC 83mA 2W compact IoT-friendly EN certified
Mean Well IRM-02-24S PSU 24V DC 83mA 2W compact IoT-friendly EN certified
Standard range
Order code: 05-0918
MPN: IRM-02-24S

Available to back orderBack-order availability date - 12/12/2025
1+ £6.03
5+ £5.85
10+ £5.68
25+ £5.49
50+ £5.31
Price per unit Ex VAT 		SMD 77% 83mA 83mA 24V DC 200 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-3.3 AC/DC PSU 3.3 V 600 mA 2 W compact for IoT sensors
Mean Well IRM-02-3.3 AC/DC PSU 3.3 V 600 mA 2 W compact for IoT sensors
Standard range
Order code: 05-0919
MPN: IRM-02-3.3

28 in stock, despatched in 4 working days
1+ £5.85
5+ £5.68
10+ £5.51
25+ £5.43
50+ £5.35
Price per unit Ex VAT 		Pins 66% 600mA 600mA 3.3V DC 150 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-3.3S low-power 3.3V 600mA AC/DC PSU compact and efficient
Mean Well IRM-02-3.3S low-power 3.3V 600mA AC/DC PSU compact and efficient
Standard range
Order code: 05-0920
MPN: IRM-02-3.3S

2 in stock, despatched in 4 working days
1+ £8.31
5+ £8.03
10+ £7.80
25+ £7.74
50+ £7.68
Price per unit Ex VAT 		SMD 66% 600mA 600mA 3.3V DC 150 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-5S PSU 5V DC 400mA 2W compact low power UL 94 V-0 casing
Mean Well IRM-02-5S PSU 5V DC 400mA 2W compact low power UL 94 V-0 casing
Standard range
Order code: 05-0922
MPN: IRM-02-5S

Available to back orderBack-order availability date - 12/12/2025
1+ £6.86
5+ £6.65
10+ £6.45
25+ £6.35
50+ £6.26
Price per unit Ex VAT 		SMD 70% 400mA 400mA 5V DC 150 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-9 AC/DC PSU 9V DC 222mA 2W compact low power IoT use
Mean Well IRM-02-9 AC/DC PSU 9V DC 222mA 2W compact low power IoT use
Standard range
Order code: 05-0923
MPN: IRM-02-9

Available to back orderBack-order availability date - 12/12/2025
1+ £5.50
5+ £5.34
10+ £5.18
25+ £5.10
50+ £5.02
Price per unit Ex VAT 		Pins 72% 222mA 222mA 9V DC 150 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
Mean Well IRM-02-9S compact AC/DC PSU 9V 222mA 2W IoT automation ready
Mean Well IRM-02-9S compact AC/DC PSU 9V 222mA 2W IoT automation ready
Standard range
Order code: 05-0924
MPN: IRM-02-9S

Available to back orderBack-order availability date - 12/12/2025
1+ £6.04
5+ £5.85
10+ £5.69
25+ £5.49
50+ £5.31
Price per unit Ex VAT 		SMD 72% 222mA 222mA 9V DC 150 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 2W II ±2.5%
