Mean Well IRM-02-12S IRM-02 AC/DC PSU 12V DC 167mA 2W compact low-power

Mean Well
Order Code:

05-0915

Brand: Mean Well MPN: IRM-02-12S EAN-13: 4021087034739
Qty Unit Price (Ex VAT)
1+ £5.47
5+ £5.31
10+ £5.15
25+ £5.08
50+ £5.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

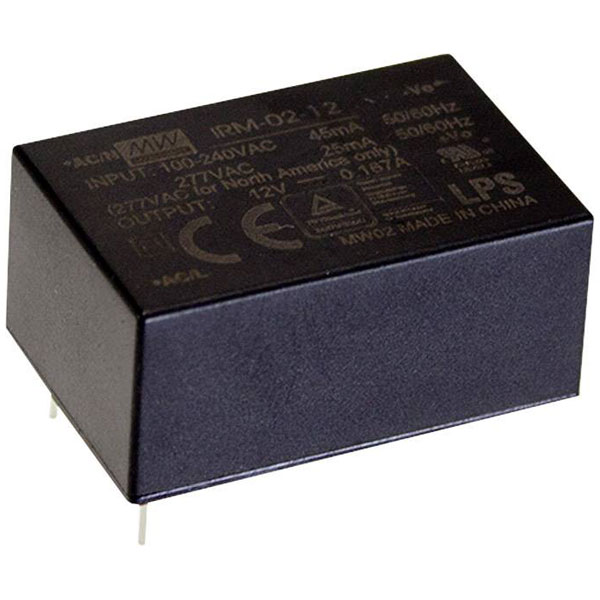

The Mean Well IRM-02-12S is an AC/DC power supply unit designed for PCB mounting, with a voltage output of 12 V DC and a current rating of 167 mA, delivering 2 watts of power. It features solder lug connections, making it suitable for applications requiring secure PCB integration. Typical uses include powering small electronic devices in industrial and consumer electronics applications.
Connection SMD
Consumption (standby) 75mW
Dim (L x W x H) 33.7 x 22.2 x 15 mm
Efficiency to 74%
Height 15mm
Input Frequency 47-63Hz
Input voltage (max.) 305V AC
Length 33.7mm
Max. output current 167mA
Min. input voltage 85V AC
Number of Outputs 1
Operating Temperature -30°C to +85°C
Operating temperature (max.) +85°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 167mA
Output voltage (max.) 12V DC
Power 2W
Protection Class II
Residual ripple 150 mVp-p
Tolerance (output voltage) ±2.5%
Type AC/DC PSU (print)
Width 22.2mm
