Mean Well DC-DC converters DC/DC converter (module) 608135

Mean Well Brand: Mean Well
The group consists of Mean Well DC/DC converters, designed for various electrical specifications and applications, each offering dual outputs and efficient power management.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Input Voltage Range Output Current Efficiency (max.) Max. output current Min. input voltage Power Rating Connection Dim Height Insulation Voltage Length Number of Outputs Operating temperature (max.) Operating temperature (min.) Power PSU features Type Width
Mean Well DPB09A-05 DC/DC converter 800mA 9W 2 outputs 1 piece
Mean Well DPB09A-05 DC/DC converter 800mA 9W 2 outputs 1 piece
Standard range
Order code: 05-0382
MPN: DPB09A-05

Available to back orderBack-order availability date - 12/03/2026
1+ £13.06
Price per unit Ex VAT 		5V DC 18V DC 800mA 85% 800mA 9V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
Mean Well DPB09A-12 DC/DC converter 9W 375mA dual-output module
Mean Well DPB09A-12 DC/DC converter 9W 375mA dual-output module
Standard range
Order code: 05-0383
MPN: DPB09A-12

1 in stock, despatched in 4 working days
1+ £12.94
Price per unit Ex VAT 		12V DC 18V DC 375mA 88% 375mA 9V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
Mean Well DPB09A-15 DC/DC converter 300mA 9W dual output 1 piece
Mean Well DPB09A-15 DC/DC converter 300mA 9W dual output 1 piece
Standard range
Order code: 05-0384
MPN: DPB09A-15

Available to back orderBack-order availability date - 12/03/2026
1+ £18.63
Price per unit Ex VAT 		15V DC 18V DC 300mA 88% 300mA 9V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
Mean Well DPB09B-12 DC/DC converter 9W 375mA dual output module
Mean Well DPB09B-12 DC/DC converter 9W 375mA dual output module
Standard range
Order code: 05-0385
MPN: DPB09B-12

1 in stock, despatched in 4 working days
1+ £13.39
Price per unit Ex VAT 		12V DC 36V DC 375mA 87% 375mA 18V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm

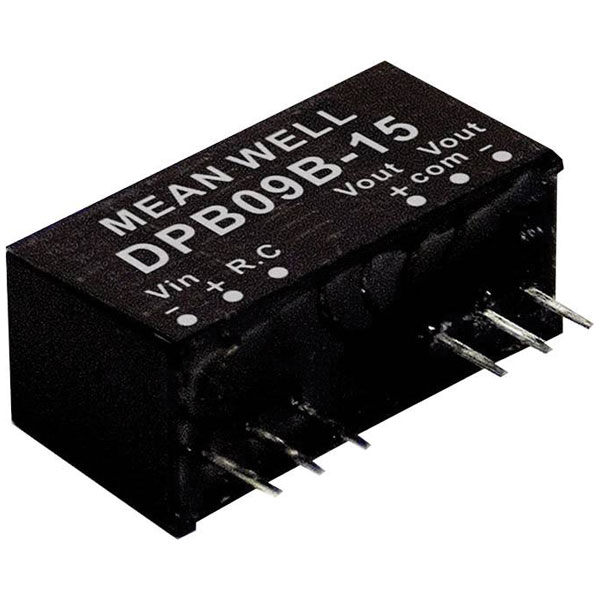

Mean Well DPB09B-15 DC/DC converter module 300mA 9W 2 outputs
Mean Well DPB09B-15 DC/DC converter module 300mA 9W 2 outputs
Standard range
Order code: 05-0386
MPN: DPB09B-15

Available to back orderBack-order availability date - 12/03/2026
1+ £15.61
Price per unit Ex VAT 		15V DC 36V DC 300mA 87% 300mA 18V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
Mean Well DPB09C-05 DC/DC converter 9W 800mA 2 outputs
Mean Well DPB09C-05 DC/DC converter 9W 800mA 2 outputs
Standard range
Order code: 05-0387
MPN: DPB09C-05

1 in stock, despatched in 4 working days
1+ £13.53
Price per unit Ex VAT 		5V DC 75V DC 800mA 84% 800mA 36V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
Mean Well DPB09C-12 DC/DC converter 375mA 9W dual outputs
Mean Well DPB09C-12 DC/DC converter 375mA 9W dual outputs
Standard range
Order code: 05-0388
MPN: DPB09C-12

2 in stock, despatched in 4 working days
1+ £12.40
Price per unit Ex VAT 		12V DC 75V DC 375mA 87% 375mA 36V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
Mean Well DPB09C-15 DC/DC converter 300mA 9W dual output module
Mean Well DPB09C-15 DC/DC converter 300mA 9W dual output module
Standard range
Order code: 05-0389
MPN: DPB09C-15

6 in stock, despatched in 4 working days
1+ £13.27
Price per unit Ex VAT 		15V DC 75V DC 300mA 87% 300mA 36V DC 9 W Pins (L x W x H) 24 x 9.6 x 11.2 mm 11.2mm 1500V DC 24mm 2 +90°C -40°C 9W DC-to-DC converter DC/DC converter (module) 9.6mm
