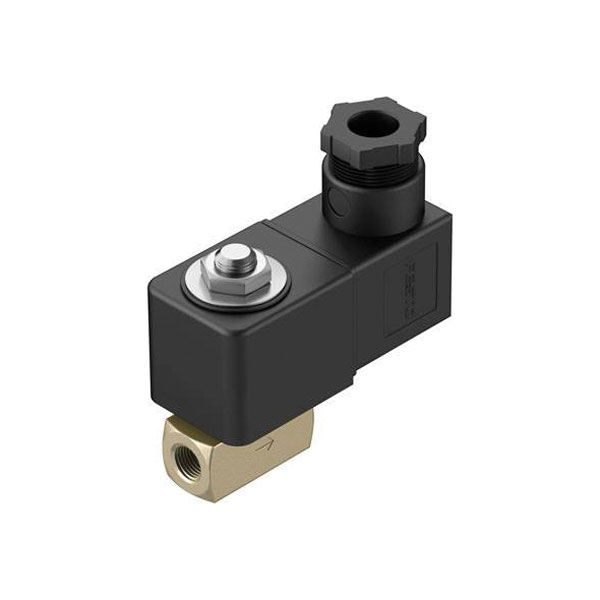

FESTO Pneumatic Valves Magnetic valve 612410

FESTO Brand: FESTO
The parts referenced are a selection of magnetic valves manufactured by FESTO that come in various sizes and specifications.
Description Image Product Buy Pricing (Ex VAT) Maximum Operating Pressure Minimum Operating Pressure Current Consumption Connection Enclosure material Control pressure (max.) Function Control pressure (min.) IP Rating Max. ambient temperature Max. media temperature Max. flow Media temperature (min.) Media temperature (range) Min. ambient temperature Misc Attribute Nominal width Sealant Operating medium Operating Voltage
FESTO 1491827 VZWD Valve 2mm magnetic 1pc nominal width
FESTO 1491827 VZWD Valve 2mm magnetic 1pc nominal width
Extended range
Order code: 03-1682
MPN: 1491827

Available to back orderBack order, lead time 14 days
1+ £68.24
Price per unit Ex VAT 		Brass 2/2 normally closed mono-stable IP65 35°C 80°C -10°C -10 up to 80 °C -10°C Normal nominal flow rate: 140 l/min 2mm FPM
FESTO 1492111 VZWF Magnetic valve 13.5 mm 24 V DC 1pc
FESTO 1492111 VZWF Magnetic valve 13.5 mm 24 V DC 1pc
Extended range
Order code: 03-1683
MPN: 1492111

Available to back orderBack order, lead time 14 days
1+ £161.17
Price per unit Ex VAT 		10bar 0bar 11W Brass IP65 +35°C +80°C 2350l/min -10°C -10 up to +80 °C -10°C 13.5mm NBR Compressed air, inert gases, mineral oil, neutral fluids, water 24V DC
FESTO 575503 VUVS Magnetic valve G 1/4 width 6.9 mm 1pc
FESTO 575503 VUVS Magnetic valve G 1/4 width 6.9 mm 1pc
Extended range
Order code: 03-2982
MPN: 575503

2 available to back orderBack-order availability date - 16/01/2026
1+ £81.24
Price per unit Ex VAT 		10bar 2.5bar G 1/4 Aluminium (die-cast) 5/2 mono-stable IP65 60°C 60°C -10°C -10 up to 60 °C -10°C Normal rated flow: 1300 l/min 6.9mm According to ISO 8573-1:2010 compressed air [7:4:4]
FESTO 575685 VUVS magnetic valve G 1/8 5mm nominal width 1pc
FESTO 575685 VUVS magnetic valve G 1/8 5mm nominal width 1pc
Extended range
Order code: 03-2983
MPN: 575685

2 available to back orderBack-order availability date - 16/01/2026
1+ £94.71
Price per unit Ex VAT 		10bar -0.9bar G 1/8 Aluminium (die-cast) 10bar 5/3 normally open 2.5bar 60°C 60°C -10°C -10 up to 60 °C -10°C Normal nominal flow rate: 700 l/min 5mm According to ISO 8573-1:2010 compressed air [7:4:4]
FESTO 8043213 VUVS Magnetic valve 24 V DC G 1/8 5.2 mm width
FESTO 8043213 VUVS Magnetic valve 24 V DC G 1/8 5.2 mm width
Extended range
Order code: 03-3147
MPN: 8043213

6 available to back orderBack-order availability date - 16/01/2026
1+ £39.75
Price per unit Ex VAT 		8bar 1.5bar 2.4W G 1/8 Aluminium wrought alloy 3/2-way IP65 +50°C +50°C 550l/min -5°C -5 up to +50 °C -5°C 5.2mm According to ISO 8573-1:2010 compressed air [7:4:4] 24V DC
FESTO 8043214 VUVS Series magnetic valve 24 V DC G 1/8 5.2 mm
FESTO 8043214 VUVS Series magnetic valve 24 V DC G 1/8 5.2 mm
Extended range
Order code: 03-3148
MPN: 8043214

3 available to back orderBack-order availability date - 16/01/2026
1+ £44.83
Price per unit Ex VAT 		8bar 1.5bar 2.4W G 1/8 Aluminium wrought alloy 5/2-way IP65 +50°C +50°C 550l/min -5°C -5 up to +50 °C -5°C 5.2mm According to ISO 8573-1:2010 compressed air [7:4:4] 24V DC
FESTO 8043217 VUVS Magnetic valve 24V DC G 1/4 Nominal width 6.7mm
FESTO 8043217 VUVS Magnetic valve 24V DC G 1/4 Nominal width 6.7mm
Extended range
Order code: 03-3149
MPN: 8043217

18 available to back orderBack-order availability date - 16/01/2026
1+ £48.43
Price per unit Ex VAT 		8bar 1.5bar 3.3W G 1/4 Aluminium wrought alloy 3/2-way IP65 +50°C +50°C 1000l/min -5°C -5 up to +50 °C -5°C 6.7mm According to ISO 8573-1:2010 compressed air [7:4:4] 24V DC
FESTO 8043218 VUVS Magnetic valve 24V DC G 1/4 6.7mm 1pc
FESTO 8043218 VUVS Magnetic valve 24V DC G 1/4 6.7mm 1pc
Extended range
Order code: 03-3150
MPN: 8043218

5 available to back orderBack-order availability date - 16/01/2026
1+ £49.80
Price per unit Ex VAT 		8bar 1.5bar 3.3W G 1/4 Aluminium wrought alloy 5/2-way IP65 +50°C +50°C 1000l/min -5°C -5 up to +50 °C -5°C 6.7mm According to ISO 8573-1:2010 compressed air [7:4:4] 24V DC
FESTO 8043219 VUVS Magnetic valve 24V DC G1/4 Nominal width 6.7mm
FESTO 8043219 VUVS Magnetic valve 24V DC G1/4 Nominal width 6.7mm
Extended range
Order code: 03-3151
MPN: 8043219

2 available to back orderBack-order availability date - 16/01/2026
1+ £64.12
Price per unit Ex VAT 		8bar 1.5bar G 1/4 Aluminium wrought alloy 5/2-way IP65 +50°C +50°C 1000l/min -5°C -5 up to +50 °C -5°C 6.7mm According to ISO 8573-1:2010 compressed air [7:4:4] 24V DC
