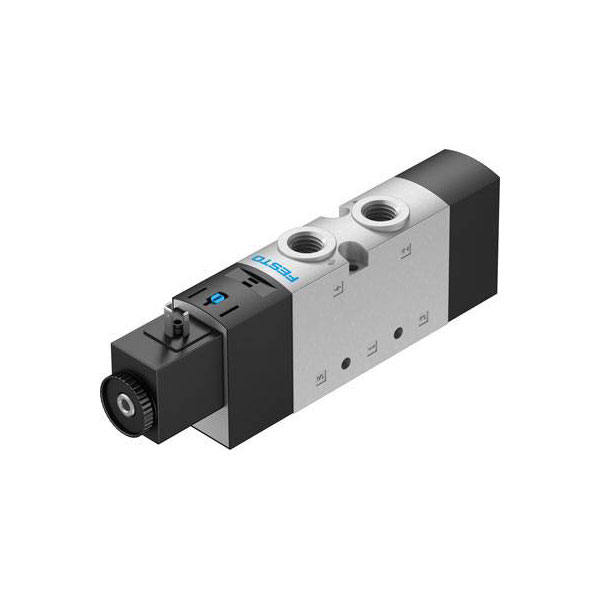

FESTO 575503 VUVS Magnetic valve G 1/4 width 6.9 mm 1pc

FESTO
Order Code:

03-2982

Brand: FESTO MPN: 575503 EAN-13: 4052568260606
Qty Unit Price (Ex VAT)
1+ £81.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 13/01/2026

The Festo 575503 magnetic valve is designed for controlling water flow with a nominal width of 6.9 mm. It features a robust construction suitable for various fluid applications. This valve is commonly used in automation systems requiring precise fluid regulation.
Type Magnetic valve
Maximum Operating Pressure 10bar
Minimum Operating Pressure 2.5bar
Connection G 1/4
Enclosure material Aluminium (die-cast)
Function 5/2 mono-stable
IP Rating IP65
Max. ambient temperature 60°C
Max. media temperature 60°C
Media temperature (min.) -10°C
Media temperature (range) -10 up to 60 °C
Min. ambient temperature -10°C
Misc Attribute Normal rated flow: 1300 l/min
Nominal width 6.9mm
Operating medium According to ISO 8573-1:2010 compressed air [7:4:4]
