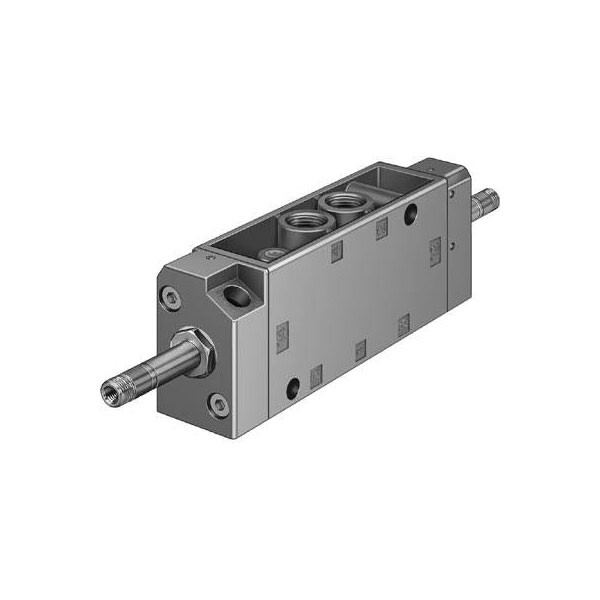

FESTO Pneumatic Valves Magnetic valve 612406

FESTO Brand: FESTO
The components listed, manufactured by Festo, belong to a group of magnetic valves designed for controlling fluid flow in various industrial applications.
Description Image Product Buy Qty Pricing (Ex VAT) Connection Current consumption Control pressure (max.) Enclosure material Control pressure (min.) IP rating Function Manufacturer part # Max. ambient temperature Max. flow Max. media temperature Max. operating pressure Media temperature (min.) Media temperature (range) Min. ambient temperature Nominal width Misc Attribute Operating medium Operating pressure (min.) Operation
FESTO 10410 Magnetic valve JMFH-5-1/4 G 1/4 7mm 1 piece
FESTO 10410 Magnetic valve JMFH-5-1/4 G 1/4 7mm 1 piece
Standard range
Order code: 03-1326
MPN: 10410

1 in stock, despatched in 4 working days
1+ £210.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		G 1/4 Aluminium (die-cast) IP65 10410 +40°C 1100l/min +60°C 8bar -10°C -10 up to +60 °C -5°C 7mm According to ISO 8573-1:2010 compressed air [7:4:4] 1.5bar Electrically
FESTO 1491825 Magnetic valve 1mm width single unit
FESTO 1491825 Magnetic valve 1mm width single unit
Standard range
Order code: 03-1681
MPN: 1491825

4 in stock, despatched in 4 working days
1+ £47.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Brass IP65 2/2 normally closed mono-stable 1491825 35°C 80°C -10°C -10 up to 80 °C -10°C 1mm Normal nominal flow rate: 60 l/min
FESTO 1492112 Magnetic valve 13.5mm 24V DC 1pc
FESTO 1492112 Magnetic valve 13.5mm 24V DC 1pc
Standard range
Order code: 03-1684
MPN: 1492112

3 in stock, despatched in 4 working days
1+ £75.96
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		11W Brass IP65 1492112 +35°C 2660l/min +80°C 10bar -10°C -10 up to +80 °C -10°C 13.5mm Compressed air, inert gases, mineral oil, neutral fluids, water 0bar Electrically
FESTO 196131 Magnetic valve MHE2-MS1H-3/2G-M7 M7 2 mm 1pc
FESTO 196131 Magnetic valve MHE2-MS1H-3/2G-M7 M7 2 mm 1pc
Standard range
Order code: 03-2629
MPN: 196131

2 in stock, despatched in 4 working days
1+ £126.52
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		M7 Zinc (die-cast) IP65 3/2 normally closed mono-stable 196131 60°C 60°C 8bar -5°C -5 up to 60 °C -5°C 2mm Normal nominal flow rate: 100 l/min According to ISO 8573-1:2010 compressed air [7:4:4] -0.9bar
FESTO 196912 magnetic valve 6 mm width energy-saving high flow
FESTO 196912 magnetic valve 6 mm width energy-saving high flow
Standard range
Order code: 03-2631
MPN: 196912

1 in stock, despatched in 4 working days
1+ £159.20
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Aluminium (die-cast) IP65 5/2 mono-stable 196912 50°C 50°C 8bar -5°C -5 up to 50 °C -5°C 6mm Normal nominal flow rate: 680 l/min According to ISO 8573-1:2010 compressed air [7:4:4] 3bar
FESTO 19701 Magnetic valve 24V DC G 1/4 7mm 1pc
FESTO 19701 Magnetic valve 24V DC G 1/4 7mm 1pc
Standard range
Order code: 03-2635
MPN: 19701

2 in stock, despatched in 4 working days
1+ £280.52
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		G 1/4 2.5W Aluminium (die-cast) 19701 +50°C 1300l/min +50°C 10bar -5°C -5 up to +50 °C -5°C 7mm According to ISO 8573-1:2010 compressed air [7:4:4] 2bar Electrically
FESTO 533342 Magnetic valve with VMPA1-M1H series features
FESTO 533342 Magnetic valve with VMPA1-M1H series features
Extended range
Order code: 03-2815
MPN: 533342

Available to back orderBack order, lead time 8 days
1+ £72.50
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		8bar Aluminium (die-cast) 3bar IP65 5/2 mono-stable 533342 50°C 50°C 10bar -5°C -5 up to 50 °C -5°C Normal rated flow 360 l/min According to ISO 8573-1:2010 compressed air [7:4:4] -0.9bar
FESTO 533346 Magnetic valve VMPA1-M1H-E-PI 1pc compact design
FESTO 533346 Magnetic valve VMPA1-M1H-E-PI 1pc compact design
Standard range
Order code: 03-2818
MPN: 533346

2 in stock, despatched in 4 working days
1+ £109.24
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		8bar Aluminium (die-cast) 3bar IP65 5/3 vented (out) 533346 50°C 50°C 10bar -5°C -5 up to 50 °C -5°C Normal nominal flow rate: 240 l/min According to ISO 8573-1:2010 compressed air [7:4:4] -0.9bar
FESTO 533347 Magnetic valve VMPA1-M1H-K-PI 1pcs reliable nanotech
FESTO 533347 Magnetic valve VMPA1-M1H-K-PI 1pcs reliable nanotech
Standard range
Order code: 03-2819
MPN: 533347

5 in stock, despatched in 4 working days
1+ £99.62
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		8bar Aluminium (die-cast) 3bar IP65 2x3/2 normally closed mono-stable 533347 50°C 50°C 10bar -5°C -5 up to 50 °C -5°C Normal rated flow 230 l/min According to ISO 8573-1:2010 compressed air [7:4:4] 3bar
FESTO 7802 Magnetic valve G 1/8 5mm nominal width 1pc
FESTO 7802 Magnetic valve G 1/8 5mm nominal width 1pc
Standard range
Order code: 03-3069
MPN: 7802

1 in stock, despatched in 4 working days
1+ £127.56
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		G 1/8 Aluminium (die-cast) IP65 7802 +40°C 500l/min +60°C 8bar -10°C -10 up to +60 °C -5°C 5mm According to ISO 8573-1:2010 compressed air [7:4:4] 1.5bar Electrically
FESTO 9857 Magnetic valve MFH-3-1/2 G1/2 14mm 1pc
FESTO 9857 Magnetic valve MFH-3-1/2 G1/2 14mm 1pc
Standard range
Order code: 03-3263
MPN: 9857

2 in stock, despatched in 4 working days
1+ £241.61
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		G 1/2 Aluminium (die-cast) IP65 9857 +40°C 3700l/min +60°C 8bar -10°C -10 up to +60 °C -5°C 14mm According to ISO 8573-1:2010 compressed air [7:4:4] 1.5bar Electrically
FESTO 9964 Magnetic valve G 1/4 7mm Nominal width 1pc
FESTO 9964 Magnetic valve G 1/4 7mm Nominal width 1pc
Standard range
Order code: 03-3264
MPN: 9964

4 in stock, despatched in 4 working days
1+ £145.72
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		G 1/4 Aluminium (die-cast) IP65 9964 +40°C 800l/min +60°C 8bar -10°C -10 up to +60 °C -5°C 7mm According to ISO 8573-1:2010 compressed air [7:4:4] 1.5bar Electrically
