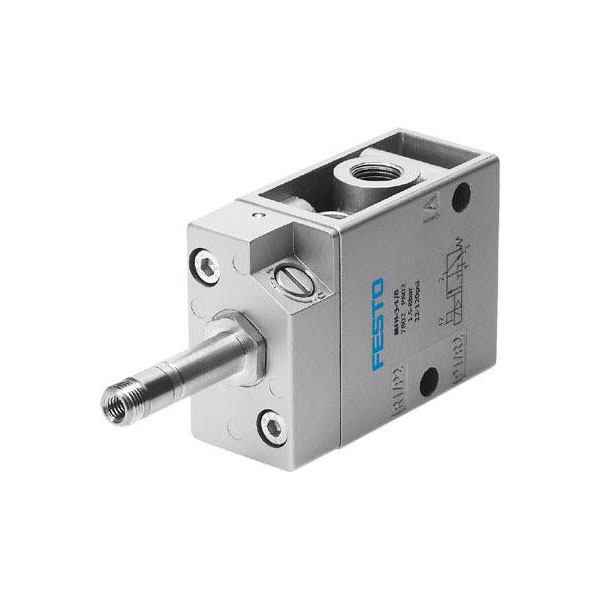

FESTO 7802 Magnetic valve G 1/8 5mm nominal width 1pc

FESTO
Order Code:

03-3069

Brand: FESTO MPN: 7802 EAN-13: 4052568001599
Qty Unit Price (Ex VAT)
1+ £215.60
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 15/01/2026

The FESTO magnetic valve 7802 MFH-3-1/8 features a nominal width of 5 mm and a G 1/8 connection. As an all-fluid valve, it efficiently regulates water flow and other fluid systems. Commonly employed in industrial automation, it enhances control and precision in fluid management tasks.
Type Magnetic valve
Maximum Operating Pressure 8bar
Minimum Operating Pressure 1.5bar
Connection G 1/8
Enclosure material Aluminium (die-cast)
IP Rating IP65
Max. ambient temperature +40°C
Max. flow 500l/min
Max. media temperature +60°C
Media temperature (min.) -10°C
Media temperature (range) -10 up to +60 °C
Min. ambient temperature -5°C
Nominal width 5mm
Operating medium According to ISO 8573-1:2010 compressed air [7:4:4]
Operation Electrically
Sealant NBR
