Mean Well LED Drivers LED driver 608157

Mean Well Brand: Mean Well
The group of parts from Mean Well consists of ELG series LED drivers that provide constant voltage, dimmable options, and surge protection, serving as versatile power solutions for lighting applications.
Description Image Product Buy Pricing (Ex VAT) IP Rating Max. output current Max. power Misc Attribute 1 Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Power range Test mark Type Connection Dim Factory colour Height Length Max. temperature Min. temperature Misc Attribute 2 Number of Inputs
Mean Well ELG-100-24AB-3Y ELG series LED driver 96W constant voltage
Mean Well ELG-100-24AB-3Y ELG series LED driver 96W constant voltage
Standard range
Order code: 05-0443
MPN: ELG-100-24AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £33.94
Price per unit Ex VAT 		IP65 4A 96W Constant voltage 4A 2A 26.4V DC 21.6V DC 96 W (max) SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1

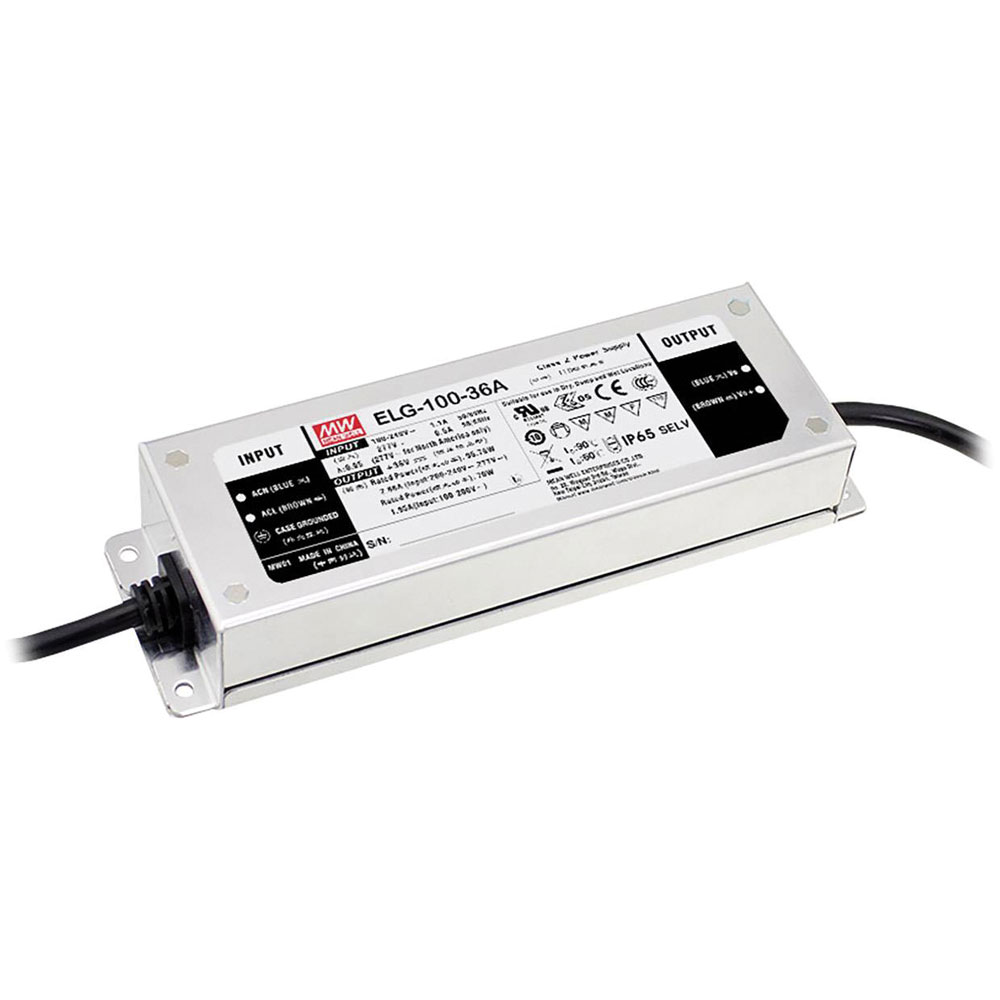

Mean Well ELG-100-36AB-3Y LED driver 95.76W dimmable surge protection
Mean Well ELG-100-36AB-3Y LED driver 95.76W dimmable surge protection
Standard range
Order code: 05-0446
MPN: ELG-100-36AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £36.06
Price per unit Ex VAT 		IP65 2.66A 95.76W Constant voltage 2.66A 1.33A 39.6V DC 32.4V DC 95.76 W (max) SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1
Mean Well ELG-100-48AB-3Y elg series LED driver 96W 3-in-1 dimmable
Mean Well ELG-100-48AB-3Y elg series LED driver 96W 3-in-1 dimmable
Standard range
Order code: 05-0447
MPN: ELG-100-48AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £33.94
Price per unit Ex VAT 		IP65 2A 96W Constant voltage 2A 1A 52.8V DC 43.2V DC 96 W (max) SELV, UL, MM, ENEC, CB, CE LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1
Mean Well ELG-100-C1050B-3Y ELG series LED driver 99.75W 1050mA dimmable
Mean Well ELG-100-C1050B-3Y ELG series LED driver 99.75W 1050mA dimmable
Standard range
Order code: 05-0448
MPN: ELG-100-C1050B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £35.22
Price per unit Ex VAT 		IP67 1050mA 99.75W Constant current 1.05A 95V DC 48V DC 99.75 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1
Mean Well ELG-100-C1050DA-3Y ELG series LED driver 99.75W DALI dimmable
Mean Well ELG-100-C1050DA-3Y ELG series LED driver 99.75W DALI dimmable
Standard range
Order code: 05-0449
MPN: ELG-100-C1050DA-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £36.56
Price per unit Ex VAT 		IP67 1050mA 99.75W Constant current 1.05A 95V DC 48V DC 99.75 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1
Mean Well ELG-100-C700B-3Y ELG series LED driver 100W 700mA 3-in-1 dimmer
Mean Well ELG-100-C700B-3Y ELG series LED driver 100W 700mA 3-in-1 dimmer
Standard range
Order code: 05-0450
MPN: ELG-100-C700B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £35.22
Price per unit Ex VAT 		IP67 700mA 100.1W Constant current 700mA 143V DC 71V DC 100.1 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1
Mean Well ELG-100-C700DA-3Y ELG series LED driver 100.1W 700mA DALI dimmable
Mean Well ELG-100-C700DA-3Y ELG series LED driver 100.1W 700mA DALI dimmable
Standard range
Order code: 05-0451
MPN: ELG-100-C700DA-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £38.85
Price per unit Ex VAT 		IP67 700mA 100.1W Constant current 700mA 143V DC 71V DC 100.1 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 199 x 63 x 35.5 mm Metal 35.5mm 199mm +90°C -40°C Pulsed 1
