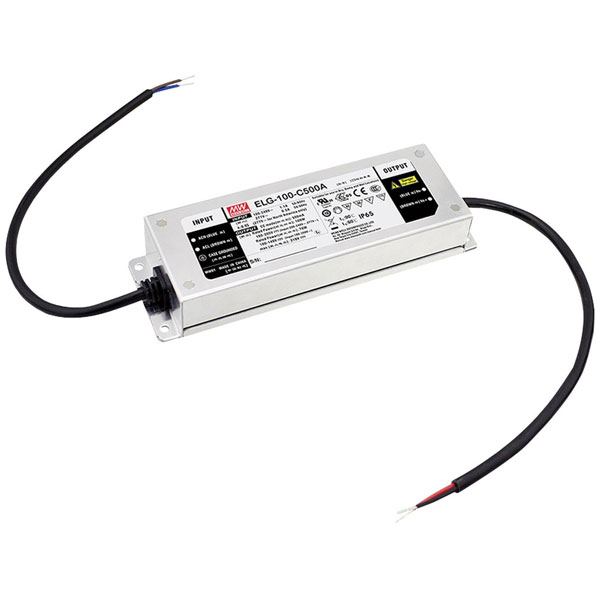

Mean Well ELG-100-C1050DA-3Y ELG series LED driver 99.75W DALI dimmable

The Mean Well ELG-100-C1050DA-3Y LED driver provides a constant current output of 1050 mA and supports a voltage range of 48 - 95 V DC. This outdoor-rated, dimmable power supply includes features like a PFC circuit, surge protection, and overvoltage protection, making it suitable for use on flammable surfaces and approved for furniture applications. It is ideal for controlling LED lighting in various environments, offering reliable performance for both indoor and

Type	LED driver
Connection	Open end cable
Dim	(L x W x H) 199 x 63 x 35.5 mm
Factory colour	Metal
Height	35.5mm
IP Rating	IP67
Length	199mm
Max. output current	1050mA
Max. power	99.75W
Max. temperature	+90°C
Min. temperature	-40°C
Misc Attribute 1	Constant current
Misc Attribute 2	Pulsed
Number of Inputs	1
Number of Outputs	1
Output current (max.) - rounded	1.05A
Output voltage (max.)	95V DC
Output voltage (min.)	48V DC
Power range	99.75 W (max)
Protection Class	I
Test mark	CE, CB, MM, SELV, UL, ENEC
Width	63mm
