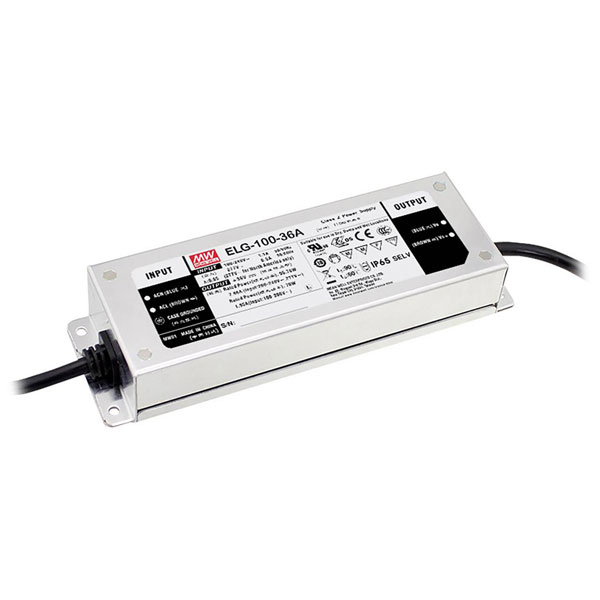

Mean Well ELG-100-36AB-3Y LED driver 95.76W dimmable surge protection

Mean Well
Order Code:

05-0446

Brand: Mean Well MPN: ELG-100-36AB-3Y EAN-13: 4021087050562
Qty Was Unit Price (Ex VAT)
1+ £43.32 £36.06
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well ELG-100-36AB-3Y LED driver provides a constant voltage output of 95.76 W with an adjustable current range of 1.33 to 2.66 A and voltage range of 32.4 to 39.6 V DC. It is suitable for use outdoors, can be installed on flammable surfaces and furniture, and includes features such as a 3-in-1 dimmer, surge protection, and an integrated PFC circuit. This
Type LED driver
Connection Open end cable
Dim (L x W x H) 199 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP65
Length 199mm
Max. output current 2.66A
Max. power 95.76W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.66A
Output current (min.) 1.33A
Output voltage (max.) 39.6V DC
Output voltage (min.) 32.4V DC
Power range 95.76 W (max)
Protection Class I
Test mark SELV, UL, MM, ENEC, CB, CE
Width 63mm
