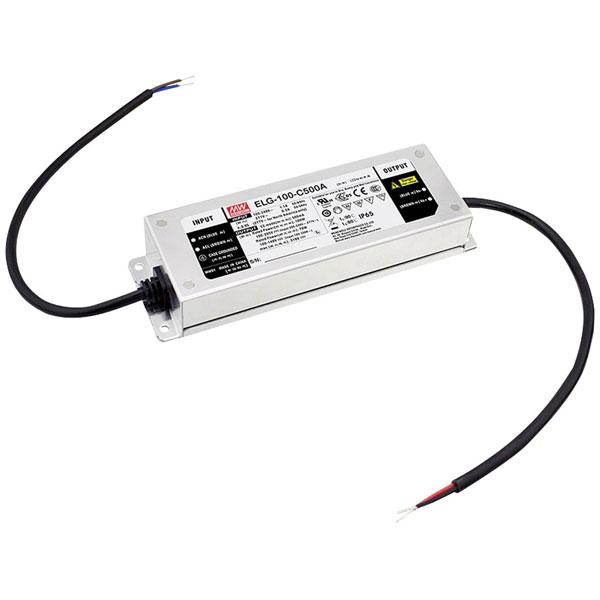

Mean Well ELG-100-C700DA-3Y ELG series LED driver 100.1W 700mA DALI dimmable

Mean Well
Order Code:

05-0451

Brand: Mean Well MPN: ELG-100-C700DA-3Y EAN-13: 4021087038508
Qty Was Unit Price (Ex VAT)
1+ £43.54 £38.85
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The mean well ELG-100-C700DA-3Y is a LED driver that provides a constant current of 700 mA with a power output of 100.1 W and a voltage range of 71 - 143 V DC, suitable for use on flammable surfaces and furniture. It features a PFC circuit, surge protection, overvoltage protection, and is dimmable, making it ideal for outdoor lighting applications. This LED driver is also approved for DALI systems,
Type LED driver
Connection Open end cable
Dim (L x W x H) 199 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 199mm
Max. output current 700mA
Max. power 100.1W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 700mA
Output voltage (max.) 143V DC
Output voltage (min.) 71V DC
Power range 100.1 W (max)
Protection Class I
Test mark CE, CB, MM, SELV, UL, ENEC
Width 63mm
