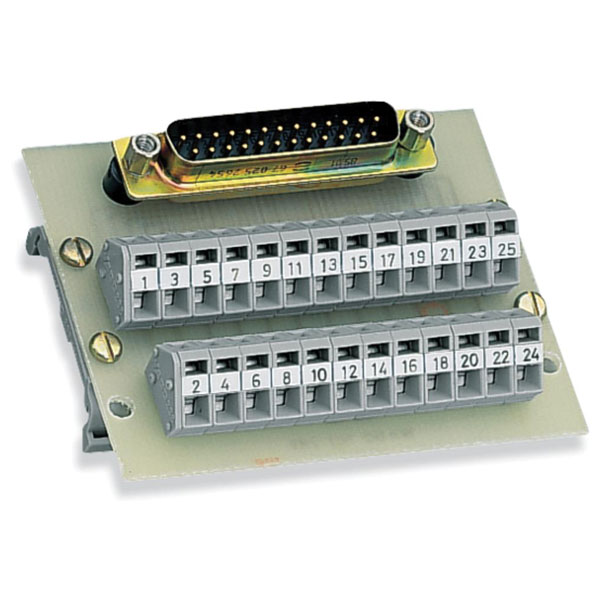

WAGO Interface Modules with Sub-Miniature D-Male and Female Connectors

WAGO Brand: WAGO

The WAGO Interface Modules have sub-miniature D-male and female connectors for mating connectors and vertical plug-in direction.

The CAGE CLAMP® connection technique allows stripped solid and ferruled conductors to be pushed in. With their space saving design, the terminal block is up to 30% smaller than standard terminal block and with a conductor entry angle of less than 15° which allows easier installation in smaller spaces.

  • CAGE CLAMP®S Connection
    • Description Image Product Buy Pricing (Ex VAT) Type No of Ways Category Height Height inch Number of pins Width Product Main Function Unit Weight Weight Width inch Termination Wire Gauge
    WAGO 289-585 Interface Module 38.5mm (W) 9-Pin D-Male Connector
    WAGO 289-585 Interface Module 38.5mm (W) 9-Pin D-Male Connector
    Standard range
    Order code: 50-4980
    MPN: 289-585

    Available to back orderBack-order availability date - 18/07/2026
    1+ £42.44
    Price per unit Ex VAT     		Transfer module 9 38.5mm Plugable/ Cage Clamp 4mm²
    WAGO 289-586 Interface Module 46mm (W) 15-Pin D-Male Connector
    WAGO 289-586 Interface Module 46mm (W) 15-Pin D-Male Connector
    Standard range
    Order code: 50-4981
    MPN: 289-586

    Available to back orderBack-order availability date - 18/07/2026
    1+ £48.55
    Price per unit Ex VAT     		Transfer module 15 15 Plugable/ Cage Clamp 4mm²
    WAGO 289-544 Interface Module 157mm (W) 50-Pin D-Male Connector
    WAGO 289-544 Interface Module 157mm (W) 50-Pin D-Male Connector
    Standard range
    Order code: 50-4976
    MPN: 289-544

    Available to back orderBack-order availability date - 18/07/2026
    1+ £89.34
    Price per unit Ex VAT     		Transfer module 50 Interface Modules and System Wiring 85mm 3.346inches 50 94mm Interface module KGM 126.758g 3.701inches Plugable/ Cage Clamp 4mm²
    WAGO 289-449 Interface Module 38.5mm (W) 9-Pin D-Male Connector
    WAGO 289-449 Interface Module 38.5mm (W) 9-Pin D-Male Connector
    Standard range
    Order code: 50-4975
    MPN: 289-449

    Available to back orderBack-order availability date - 18/07/2026
    1+ £86.00
    Price per unit Ex VAT     		Transfer module 9 Interface Modules and System Wiring 63.5mm 2.5inches 50 157mm Interface module KGM 98.660g 6.181inches Plugable/ Cage Clamp 4mm²
    WAGO 289-725 Interface Module 33.5mm (W) 9-Pin D-Female Connector
    WAGO 289-725 Interface Module 33.5mm (W) 9-Pin D-Female Connector
    Standard range
    Order code: 50-4983
    MPN: 289-725

    Available to back orderBack-order availability date - 18/07/2026
    1+ £42.82
    Price per unit Ex VAT     		9 Plugable/ Cage Clamp 4mm²
    WAGO 289-576 Interface Module 43mm (W) 15-Pin D-Female Connector
    WAGO 289-576 Interface Module 43mm (W) 15-Pin D-Female Connector
    Standard range
    Order code: 50-4979
    MPN: 289-576

    Available to back orderBack-order availability date - 18/07/2026
    1+ £51.37
    Price per unit Ex VAT     		Transfer module 15 43mm Plugable/ Cage Clamp 4mm²
    WAGO 289-624 Interface Module 46mm (W) 37-Pin D-Female Connector
    WAGO 289-624 Interface Module 46mm (W) 37-Pin D-Female Connector
    Standard range
    Order code: 50-4982
    MPN: 289-624

    Available to back orderBack-order availability date - 18/07/2026
    1+ £81.71
    Price per unit Ex VAT     		37 Plugable/ Cage Clamp 4mm²
    WAGO 289-575 Interface Module 33mm (W) 50-Pin D-Female Connector
    WAGO 289-575 Interface Module 33mm (W) 50-Pin D-Female Connector
    Standard range
    Order code: 50-4978
    MPN: 289-575

    Available to back orderBack-order availability date - 18/07/2026
    1+ £56.81
    Price per unit Ex VAT     		Transfer module 50 33 Plugable/ Cage Clamp 4mm²
    WAGO 289-559 Interface Module 94mm (W) 50-Pin D-Female Connector
    WAGO 289-559 Interface Module 94mm (W) 50-Pin D-Female Connector
    Standard range
    Order code: 50-4977
    MPN: 289-559

    Available to back orderBack-order availability date - 18/07/2026
    1+ £95.05
    Price per unit Ex VAT     		Transfer module 50 Interface Modules and System Wiring 85mm 3.346inches 50 94mm Interface module KGM 123.700g 3.701inches Plugable/ Cage Clamp 4mm²
    50-4975
    Content1 Units
    Dimensions157 x 19 x 63.5mm (W x H x D)
    Manufacturer part no.289-449
    Type (manufacturer type)289-449
    50-4976
    Content1 Units
    Dimensions94 x 34 x 85mm (W x H x D)
    Manufacturer part no.289-544
    Type (manufacturer type)289-544
    50-4977
    Content1 Units
    Dimensions94 x 34 x 85mm (W x H x D)
    Manufacturer part no.289-559
    Type (manufacturer type)289-559
    50-4978
    Content1 Units
    Dimensions33 x 34 x 85mm (W x H x D)
    Manufacturer part no.289-575
    Type (manufacturer type)289-575
    50-4979
    Content1 Units
    Dimensions43 x 34 x 85mm (W x H x D)
    Manufacturer part no.289-576
    Type (manufacturer type)289-576
    50-4980
    Content1 Units
    Dimensions38.5 x 34 x 85mm (W x H x D)
    Manufacturer part no.289-585
    Type (manufacturer type)289-585
    50-4981
    Content1 Units
    Dimensions46 x 34 x 85mm (W x H x D)
    Manufacturer part no.289-586
    Type (manufacturer type)289-586
    50-4982
    Content1 Units
    Dimensions74 x 62 x 85mm (W x H x D)
    Manufacturer part no.289-624
    Type (manufacturer type)289-624
    50-4983
    Content1 Units
    Dimensions33.5 x 48 x 85mm (W x H x D)
    Manufacturer part no.289-725
    Type (manufacturer type)289-725
