Vogt Verbindungstechnik Crimp Terminals Bullet receptacle 630004

Vogt Verbindungstechnik Brand: Vogt Verbindungstechnik
The Vogt connection technology bullet receptacles are electrical connectors designed for various wire gauges and pin sizes, featuring insulated coverings in different colours for enhanced electrical insulation and safety.
Description Image Product Buy Qty Pricing (Ex VAT) AWG (min.) AWG max. Cross section Cross-section range Factory colour max. cross section Min. cross section Pin Ø Support sleeve Contact material Insulation material Insulation type Material (details) RoHS-compliant Temperature range Type

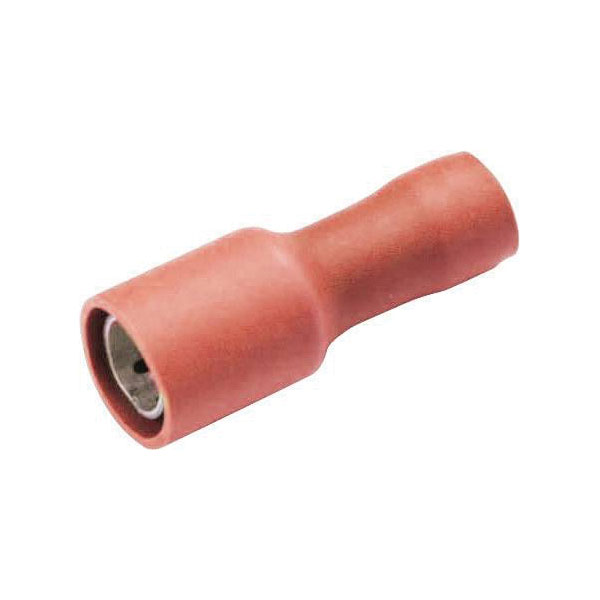

Vogt Connection Technology 3915 Bullet Receptacle 0.50-1 mm² 4mm Insulated Red
Vogt Connection Technology 3915 Bullet Receptacle 0.50-1 mm² 4mm Insulated Red
Standard range
Order code: 13-3983
MPN: 3915

3,858 in stock, despatched in 4 working days
1+ £0.262
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		22 18 0.5 - 1.0mm² 0.50 - 1 mm² Red 1mm² 0.50mm² 4mm Yes Brass tin plated PVC Insulated Brass, tin-plated Yes +70°C Bullet receptacle
Vogt 3915S Bullet Receptacle 0.50-1 mm² 4 mm Pin Insulated Red
Vogt 3915S Bullet Receptacle 0.50-1 mm² 4 mm Pin Insulated Red
Standard range
Order code: 13-3984
MPN: 3915S

1,460 in stock, despatched in 4 working days
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		22 18 0.5 - 1.0mm² 0.50 - 1 mm² Red 1mm² 0.50mm² 4mm No Brass tin plated PVC Insulated Brass, tin-plated Yes +70°C Bullet receptacle
Vogt 3916 Bullet Receptacle 1.50-2.50mm² 5mm Pin Insulated Blue
Vogt 3916 Bullet Receptacle 1.50-2.50mm² 5mm Pin Insulated Blue
Standard range
Order code: 13-3985
MPN: 3916

251 in stock, despatched in 4 working days
1+ £0.238
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		16 14 1.5 - 2.5mm² 1.50 - 2.50 mm² Blue 2.50mm² 1.50mm² 5mm Yes Brass tin plated PVC Insulated Brass, tin-plated Yes +70°C Bullet receptacle
Vogt Connection Technology 3916S Bullet Receptacle 1.50-2.50mm² 5mm Blue
Vogt Connection Technology 3916S Bullet Receptacle 1.50-2.50mm² 5mm Blue
Standard range
Order code: 13-3986
MPN: 3916S

908 in stock, despatched in 4 working days
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		16 14 1.5 - 2.5mm² 1.50 - 2.50 mm² Blue 2.50mm² 1.50mm² 5mm No Brass tin plated PVC Insulated Brass, tin-plated Yes +70°C Bullet receptacle
Vogt Connection Technology 3917 Bullet Receptacle 4mm²/6mm² Yellow Insulated
Vogt Connection Technology 3917 Bullet Receptacle 4mm²/6mm² Yellow Insulated
Standard range
Order code: 13-3987
MPN: 3917

154 in stock, despatched in 4 working days
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		12 10 4 - 6mm² 4 - 6 mm² Yellow 6mm² 4mm² 5mm Yes Brass tin plated PVC Insulated Brass, tin-plated Yes +70°C Bullet receptacle
Vogt Connection Technology 3917S Bullet Receptacle 4-6mm² 5mm Pin Yellow
Vogt Connection Technology 3917S Bullet Receptacle 4-6mm² 5mm Pin Yellow
Standard range
Order code: 13-3988
MPN: 3917S

645 in stock, despatched in 4 working days
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		12 10 4 - 6mm² 4 - 6 mm² Yellow 6mm² 4mm² 5mm No Brass tin plated PVC Insulated Brass, tin-plated Yes +70°C Bullet receptacle
