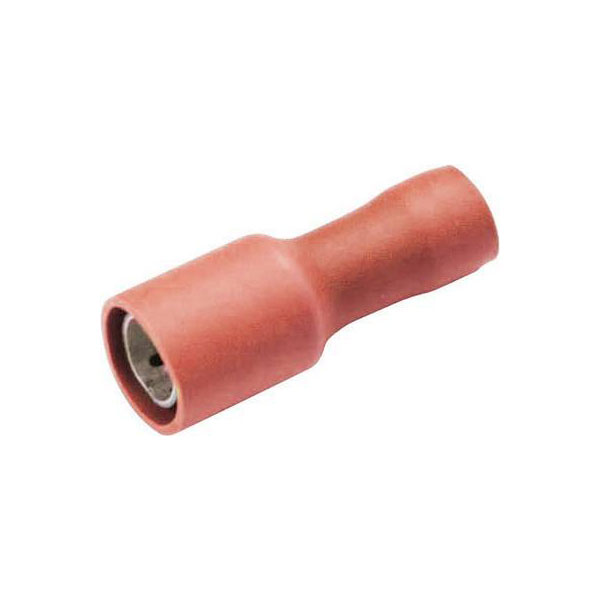

Vogt 3915S Bullet Receptacle 0.50-1 mm² 4 mm Pin Insulated Red

Image Representative of Range

Vogt 3915S Bullet Receptacle 0.50-1 mm² 4 mm Pin Insulated Red

Vogt Verbindungstechnik
Order Code:

13-3984

Brand: Vogt Verbindungstechnik MPN: 3915S EAN-13: 2050000237751
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,186 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3915S is a bullet receptacle designed for wire sizes between 0.50 mm² and 1 mm², featuring a 4 mm pin diameter and red insulation. As a reliable crimp connector, it is ideal for creating secure connections in electrical and electronic applications. Typically used in automotive or industrial environments, this component ensures firm and stable electrical connections.
Insulation PVC
Colour Red
Maximum Wire Size mm2 0.50 - 1 mm²
Maximum Wire Size AWG 18
AWG (min.) 22
Contact Material Brass tin plated
Cross Section 0.5 - 1.0mm²
Insulation Type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Pin Ø 4mm
Support sleeve No
Temperature Range +70°C
Type Bullet receptacle
