Vogt Connection Technology 3915 Bullet Receptacle 0.50-1 mm² 4mm Insulated Red

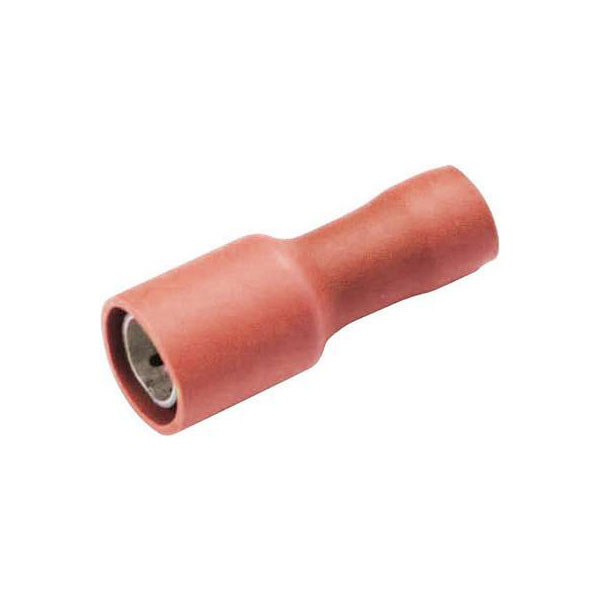

Image Representative of Range

Vogt Connection Technology 3915 Bullet Receptacle 0.50-1 mm² 4mm Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-3983

Brand: Vogt Verbindungstechnik MPN: 3915 EAN-13: 2050000242564
Qty Unit Price (Ex VAT)
20+ £0.262
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,848 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3915 is a bullet receptacle with a pin diameter of 4 mm, accommodating wire sizes from 0.50 mm² to 1 mm², and is insulated in red. It is a crimp connector used primarily in electrical and electronic applications requiring reliable connections. Typical applications include automotive and consumer electronics for connecting wires in a secure and insulated manner.
AWG (min.) 22
AWG max. 18
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Pin Ø 4mm
RoHS-compliant Yes
Support sleeve Yes
Temperature range +70°C
Type Bullet receptacle
