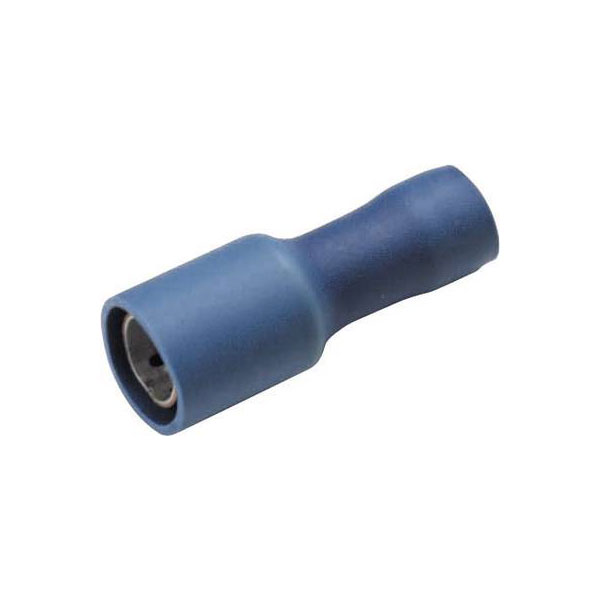

Vogt 3916 Bullet Receptacle 1.50-2.50mm² 5mm Pin Insulated Blue

Image Representative of Range

Vogt 3916 Bullet Receptacle 1.50-2.50mm² 5mm Pin Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-3985

Brand: Vogt Verbindungstechnik MPN: 3916 EAN-13: 2050000243752
Qty Unit Price (Ex VAT)
20+ £0.238
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
200 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3916 bullet receptacle, designed for wire sizes of 1.50 mm² to 2.50 mm², with a 5 mm pin diameter. This insulated, blue crimp connector is ideal for secure electrical connections in various electrical and electronic applications. Typically used for joining wiring harnesses and circuitry where a reliable disconnection feature is needed.
AWG (min.) 16
AWG max. 14
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Pin Ø 5mm
RoHS-compliant Yes
Support sleeve Yes
Temperature range +70°C
Type Bullet receptacle
