Vogt Connection Technology 3917S Bullet Receptacle 4-6mm² 5mm Pin Yellow

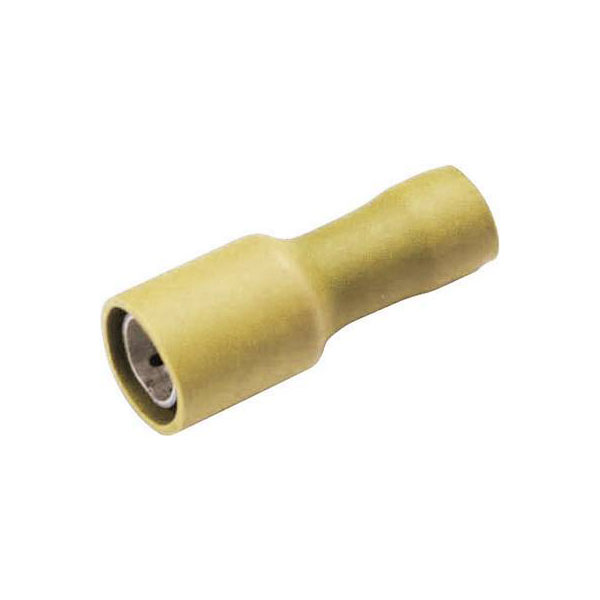

Image Representative of Range

Vogt Connection Technology 3917S Bullet Receptacle 4-6mm² 5mm Pin Yellow

Vogt Verbindungstechnik
Order Code:

13-3988

Brand: Vogt Verbindungstechnik MPN: 3917S EAN-13: 2050000241406
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
264 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 3917S bullet receptacle is designed for wire sizes ranging from 4 mm² to 6 mm² with a 5 mm pin diameter, providing secure electrical connections. The connector is insulated and coloured yellow, enhancing visibility and safety in wiring applications. It is typically used in automotive, industrial, and electrical installations where reliable crimp connections are essential.
Insulation PVC
Colour Yellow
Maximum Wire Size mm2 4 - 6 mm²
Maximum Wire Size AWG 10
AWG (min.) 12
Contact Material Brass tin plated
Cross Section 4 - 6mm²
Insulation Type Insulated
Material (details) Brass, tin-plated
max. cross section 6mm²
Min. cross section 4mm²
Pin Ø 5mm
Support sleeve No
Temperature Range +70°C
Type Bullet receptacle
