TracoPower AC-DC Converters AC/DC PSU (print) 615881

TracoPower Brand: TracoPower

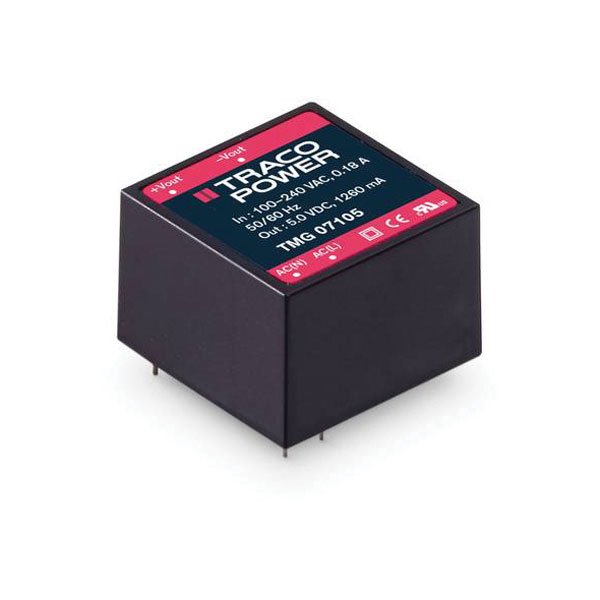

The components referenced, including TMG 15115, TMPS 03-103, and TMPS 05-105, are TracoPower power supplies characterised by their compact and efficient design, each offering varying voltage and power outputs suitable for diverse
Description Image Product Buy Pricing (Ex VAT) Dim Height Length Max. operating temperature (derating) Max. output current Min. input voltage Min. operating temperature (derating) Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Power Width Connection Input voltage (max.) Misc Attribute 2 Number of Outputs Operating temperature (max.) Type
TracoPower TMG 15115 TMG PSU 15V DC 1A 15W AC/DC Module
TracoPower TMG 15115 TMG PSU 15V DC 1A 15W AC/DC Module
Extended range
Order code: 07-8260
MPN: TMG 15115

Available to back orderBack-order availability date - 29/12/2025
1+ £31.80
5+ £28.68
10+ £28.28
25+ £27.84
50+ £27.62
Price per unit Ex VAT 		(L x W x H) 19.1 x 27.2 x 41.2 mm 41.2mm 19.1mm 50°C 1A 90V AC -40°C 1A 0A 15V DC 15V DC 15W 27.2mm Solder pins 264V AC closed 1 70°C AC/DC PSU (print)
TracoPower TMPS 03-103 AC/DC PSU 3.3V 0.9A 3W High Efficiency Compact
TracoPower TMPS 03-103 AC/DC PSU 3.3V 0.9A 3W High Efficiency Compact
Extended range
Order code: 07-8263
MPN: TMPS 03-103

Available to back orderBack-order availability date - 29/12/2025
1+ £14.28
5+ £13.84
10+ £13.42
25+ £12.84
50+ £12.28
Price per unit Ex VAT 		(L x W x H) 16.3 x 25.4 x 25.4 mm 25.4mm 16.3mm 60°C 0.9A 85V AC -25°C 900mA 0mA 3.3V DC 3W 25.4mm Solder pins 264V AC closed 1 70°C AC/DC PSU (print)
TracoPower TMPS 05-105 PSU 5V DC 1A 5W Miniature Encapsulated AC/DC Supply
TracoPower TMPS 05-105 PSU 5V DC 1A 5W Miniature Encapsulated AC/DC Supply
Extended range
Order code: 07-8267
MPN: TMPS 05-105

Available to back orderBack-order availability date - 29/12/2025
1+ £15.92
5+ £15.45
10+ £14.96
25+ £14.33
50+ £13.69
Price per unit Ex VAT 		(L x W x H) 16.3 x 25.4 x 25.4 mm 25.4mm 16.3mm 50°C 1A 85V AC -25°C 1A 0mA 5V DC 5W 25.4mm Solder pins 264V AC closed 1 70°C AC/DC PSU (print)
TracoPower TMPS 05-112 Miniature 12V 0.41A 5W AC/DC PSU High Efficiency
TracoPower TMPS 05-112 Miniature 12V 0.41A 5W AC/DC PSU High Efficiency
Extended range
Order code: 07-8268
MPN: TMPS 05-112

Available to back orderBack-order availability date - 29/12/2025
1+ £15.92
5+ £15.45
10+ £14.96
25+ £14.33
50+ £13.69
Price per unit Ex VAT 		(L x W x H) 16.3 x 25.4 x 25.4 mm 25.4mm 16.3mm 50°C 0.41A 85V AC -25°C 410mA 0mA 12V DC 5W 25.4mm Solder pins 264V AC closed 1 70°C AC/DC PSU (print)
TracoPower TMPS 05-115 AC/DC PSU 15V 0.33A 5W Short Circuit Protection
TracoPower TMPS 05-115 AC/DC PSU 15V 0.33A 5W Short Circuit Protection
Extended range
Order code: 07-8269
MPN: TMPS 05-115

Available to back orderBack-order availability date - 29/12/2025
1+ £15.92
5+ £15.45
10+ £14.96
25+ £14.33
50+ £13.69
Price per unit Ex VAT 		(L x W x H) 16.3 x 25.4 x 25.4 mm 25.4mm 16.3mm 50°C 0.33A 85V AC -25°C 330mA 0mA 15V DC 5W 25.4mm Solder pins 264V AC closed 1 70°C AC/DC PSU (print)
TracoPower TMPS 05-124 Miniature AC/DC Power Supply 24V DC 0.20A 5W
TracoPower TMPS 05-124 Miniature AC/DC Power Supply 24V DC 0.20A 5W
Extended range
Order code: 07-8270
MPN: TMPS 05-124

Available to back orderBack-order availability date - 29/12/2025
1+ £15.92
5+ £15.45
10+ £14.96
25+ £14.33
50+ £13.69
Price per unit Ex VAT 		(L x W x H) 16.3 x 25.4 x 25.4 mm 25.4mm 16.3mm 50°C 0.20A 85V AC -25°C 200mA 0mA 24V DC 5W 25.4mm Solder pins 264V AC closed 1 70°C AC/DC PSU (print)
