Degson Plugs & Headers Screw terminal 615950

Degson Brand: Degson

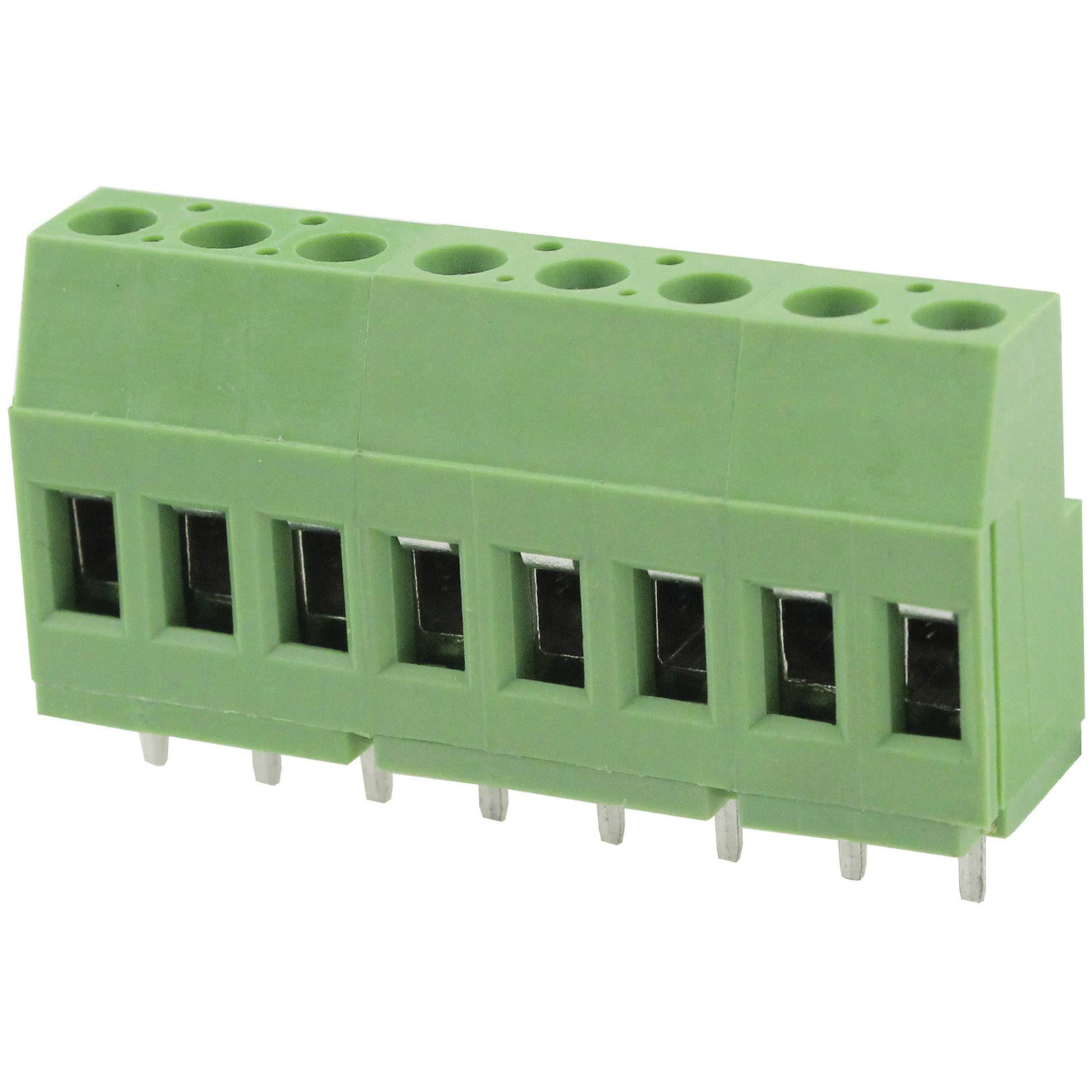

The parts are screw terminal connectors manufactured by Degson, typically green in colour and designed for electrical connections.
Description Image Product Buy Pricing (Ex VAT) Contact Material CS Height Misc Attribute Number of Pins Pins per row Width Actuation direction AWG (min.) AWG max. Connector orientation Cross section (flexible) (max.) Cross section (flexible) (min.) Cross section (inflexible) (max.) Cross section (inflexible) (min.) Enclosure material Factory colour Length Min. stripping length Nominal Current
DEGSON DG129-5.0-02P-14-00AH-1 Terminal 2 Pins 3.31mm² Green 1pc
DEGSON DG129-5.0-02P-14-00AH-1 Terminal 2 Pins 3.31mm² Green 1pc
Standard range
Order code: 02-4351
MPN: DG129-5.0-02P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.409
Price per unit Ex VAT 		Brass tin plated 5mm 21.95mm DG129-5.0-02P-14-00AH 2 2 10.00mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-5.0-03P-14-00AH-1P Screw Terminal 3 Pins 3.31mm² Green
DEGSON DG129-5.0-03P-14-00AH-1P Screw Terminal 3 Pins 3.31mm² Green
Standard range
Order code: 02-4352
MPN: DG129-5.0-03P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.613
Price per unit Ex VAT 		Brass tin plated 5mm 21.95mm DG129-5.0-03P-14-00AH 3 3 15.00mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-5.08-02P-14-00AH-1 Screw Terminal 2 Pins 3.31mm² Green
DEGSON DG129-5.08-02P-14-00AH-1 Screw Terminal 2 Pins 3.31mm² Green
Standard range
Order code: 02-4353
MPN: DG129-5.08-02P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.409
Price per unit Ex VAT 		Brass tin plated 5.08mm 21.95mm DG129-5.08-02P-14-00AH 2 2 10.16mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-5.08-03P-14-00AH-1 Screw Terminal 3-Pin 3.31 mm² Green
DEGSON DG129-5.08-03P-14-00AH-1 Screw Terminal 3-Pin 3.31 mm² Green
Standard range
Order code: 02-4354
MPN: DG129-5.08-03P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.613
Price per unit Ex VAT 		Brass silver plated 5.08mm 21.95mm DG129-5.08-03P-14-00AH 3 3 15.24mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-7.5-02P-14-00AH-1 Screw Terminal 2 Pins 3.31 mm² Green
DEGSON DG129-7.5-02P-14-00AH-1 Screw Terminal 2 Pins 3.31 mm² Green
Standard range
Order code: 02-4355
MPN: DG129-7.5-02P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.475
Price per unit Ex VAT 		Brass tin plated 7.50mm 23.35mm DG129-7.5-02P-14-00AH 2 2 15.00mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-7.5-03P-14-00AH-1 Screw Terminal 3 Pin 3.31mm² Green
DEGSON DG129-7.5-03P-14-00AH-1 Screw Terminal 3 Pin 3.31mm² Green
Standard range
Order code: 02-4356
MPN: DG129-7.5-03P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.714
Price per unit Ex VAT 		Brass tin plated 7.50mm 23.35mm DG129-7.5-03P-14-00AH 3 3 22.50mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-7.62-02P-14-00AH-1 Screw Terminal 3.31mm² 2 Pin Green
DEGSON DG129-7.62-02P-14-00AH-1 Screw Terminal 3.31mm² 2 Pin Green
Standard range
Order code: 02-4357
MPN: DG129-7.62-02P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.475
Price per unit Ex VAT 		Brass tin plated 7.62mm 23.35mm DG129-7.62-02P-14-00AH 2 2 15.24mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
DEGSON DG129-7.62-03P-14-00AH-1 Screw Terminal 3 Pins 3.31mm² Green
DEGSON DG129-7.62-03P-14-00AH-1 Screw Terminal 3 Pins 3.31mm² Green
Standard range
Order code: 02-4358
MPN: DG129-7.62-03P-14-00AH-1

Available to back orderBack order, lead time 14 days
10+ £0.713
Price per unit Ex VAT 		Brass tin plated 7.62mm 23.35mm DG129-7.62-03P-14-00AH 3 3 22.86mm Perpendicular (to the PCB) 26 12 Parallel (to the PCB) 3.31mm² 0.12mm² 3.31mm² 0.12mm² Polyamide 6.6 Green 10.50mm 7mm 20A
