DEGSON DG129-7.62-02P-14-00AH-1 Screw Terminal 3.31mm² 2 Pin Green

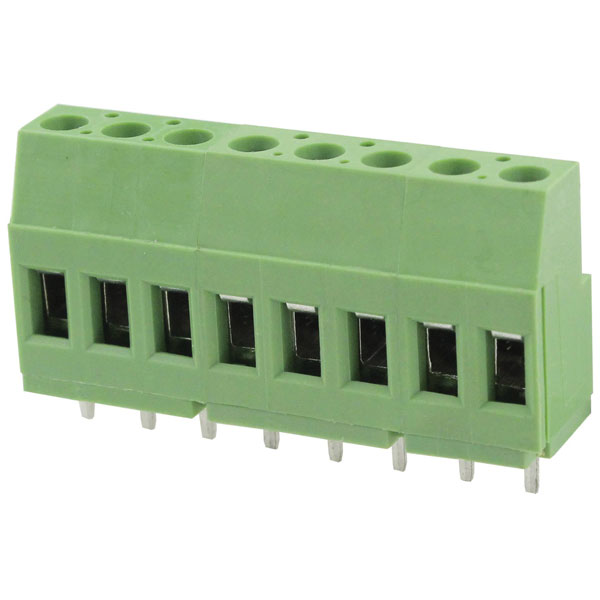

Image Representative of Range

DEGSON DG129-7.62-02P-14-00AH-1 Screw Terminal 3.31mm² 2 Pin Green

Degson
Order Code:

02-4357

Brand: Degson MPN: DG129-7.62-02P-14-00AH-1 EAN-13: 2050003389334
Qty Unit Price (Ex VAT)
10+ £0.475
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
213 in stock, despatched in 4 working days

DEGSON DG129-7.62-02P-14-00AH-1 is a screw terminal designed for printed circuit board (PCB) use with two pins and a 3.31 mm² capacity. Its green colour and lift system make it easily identifiable and user-friendly. It is typically used in electronic applications where secure and reliable wire connections are required, such as in terminal blocks and PCB connectors.
Pitch 7.62mm
No. of Ways 2
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 12AWG
Wire Termination Rising Clamp
Actuation direction Perpendicular (to the PCB)
AWG (min.) 26
AWG max. 12
Colour Green
Connector orientation Parallel (to the PCB)
Contact Material Brass tin plated
Cross section (flexible) (max.) 3.31mm²
Cross section (flexible) (min.) 0.12mm²
Cross section (inflexible) (max.) 3.31mm²
Cross section (inflexible) (min.) 0.12mm²
CS 7.62mm
Current Rating 20A
Enclosure material Polyamide 6.6
Factory colour Green
Height 23.35mm
Length 10.50mm
Min. stripping length 7mm
Misc Attribute DG129-7.62-02P-14-00AH
No. of Levels 1
Pins per row 2
Series DG127
Stripping length (max.) 7mm
Type Screw terminal
Voltage Rating 300V
Width 15.24mm
Wire protection Yes
