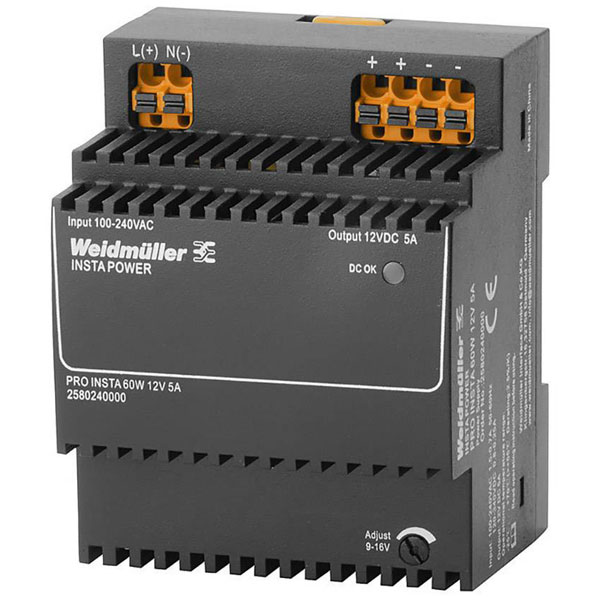

The Weidmüller PRO INSTA 60W 12V 5A SMPSU is a rail mount power supply unit designed for industrial applications, offering reliable 12 V DC output at a current of 5 A and a total power capacity of 60 W. Manufactured by Weidmüller, it is ideal for use in automation systems or control panels where stable and efficient power delivery is essential. This unit is compact and easy to install on DIN rails, making it a practical choice
| Type |
SMPSU |
| Output Voltage |
12V DC |
| Output Current |
5A |
| Power Rating |
60W |
| 1st secondary output voltage |
12 - 12 |
| AC current consumption |
0.7 A @ 230 V AC / 1.5 A |
| AC input voltage range |
85...264 V AC (derating at |
| Capacitive load |
unrestricted |
| Certificate no. (cULus) |
E258476 |
| Conductor cross-section, AWG/kcmil , 12 AWG |
Conductor cross-section, AWG/kcmil , 24 AWG |
| Conductor cross-section, flexible , max. 2.5 mm² |
Conductor cross-section, flexible , min. 0.25mm² |
| Conductor cross-section, rigid , max. |
2.5mm² |
| Conductor cross-section, rigid , min. |
0.25mm² |
| Connection |
Push-in connector |
| currents |
EN 61000-4-3 and EN |
| DC current consumption |
0.25 A @ 370 V DC / 0.8 |
| DC input voltage range |
95…370 V DC |
| Degree of efficiency |
86% |
| Degree of protection (IP) |
IP20 |
| Depth |
60 |
| Depth (inches) |
2.3622 inch |
| Dim |
(L x W x H) 60 x 72 x 90 mm |
| Direct mounting possible |
false |
| ECLASS 14 |
27-04-07-01 |
| ECLASS 15.0 |
27-04-07-01 |
| Efficiency |
86% |
| Electrical machine equipment |
Acc. to EN60204 |
| EN55032 |
EN 61000-4-3 and EN |
| ETIM 10 |
EC002540 |
| ETIM 8.0 |
EC002540 |
| ETIM 9.0 |
EC002540 |
| Frequency range AC |
45…65 Hz |
| GTIN (EAN) |
4050118590975 |
| Height |
90mm |
| Height (inches) |
3.5433 inch |
| Housing version |
Plastic, protective |
| Input fuse (internal) |
Yes |
| Input Voltage |
85 - 264 V/AC, 95 - 370V DC |
| Inrush current |
max. 40 A |
| Insulation voltage input / earth |
3.5 kV |
| Insulation voltage output / earth |
0.5 kV |
| Insulation voltage, input/output |
4 kV |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD)/ |
| IP Rating |
IP20 |
| LED green |
Operating voltage OK |
| Length |
60mm |
| Limiting of mains voltage harmonic |
EN 61000-4-2 (ESD)/ |
| max. |
min. |
| Max. operating temperature (derating) |
+70°C |
| Max. output current |
5A |
| Max. output current 1 |
5 |
| Max. temperature |
+70°C |
| Min. operating temperature (derating) |
-25°C |
| Min. temperature |
-25°C |
| Misc Attribute |
PRO INSTA 60W 12V 5A |
| Mounting position, installation notice |
Horizontal on DIN rail |
| MTBF |
750000h |
| Net weight |
258g |
| Noise emission in accordance with |
Class B |
| Nominal output current for Unom |
5 A @ 55°C |
| Nominal power consumption |
69.8 VA |
| Nominal value output current 1 |
5 |
| Nominal value output voltage 1 |
12 |
| Operating Temperature |
-25 °C...70°C |
| Operating temperature (max.) |
+70°C |
| Operating temperature (min.) |
-25°C |
| Output current, max. |
5 A |
| Output Power |
60 W |
| Output voltage stabilized |
true |
| Output voltage, max. |
16 V |
| Output voltage, min. |
9 V |
| Output voltage, note |
(adjustable via |
| Performance level according to EN ISO 13849-1 |
None |
| Phases |
1 |
| Pollution severity |
2 |
| Power Consumption |
69.8 |
| Power loss, nominal load |
8.4 W |
| Power Output |
60 |
| power supplies |
61558-2-16 |
| Protection against reverse voltages from 18…25 V DC |
Power loss, idling |
| Protection Class |
II |
| Protection degree |
IP20 |
| Ramp-up time |
= 100 ms |
| Rated input voltage |
110...240 V AC / |
| Rated output voltage |
12 V DC ± 1 % |
| Rated supply voltage AC 50 Hz |
100 - 240 |
| Rated supply voltage AC 60 Hz |
100 - 240 |
| Rated supply voltage DC |
120 - 340 |
| REACH SVHC |
Lead 7439-92-1, Lead monoxide 1317-36-8 |
| Recommended back-up fuse |
2 A / DI, safety fuse |
| Residual ripple, breaking spikes |
<50 mVss @ UNenn, Full |
| ROHS |
Yes |
| RoHS Compliance Status |
Compliant with exemption |
| RoHS Version |
2011/65/EU |
| Safety extra-low voltage |
SELV acc. to IEC |
| Safety transformers for switch-mode |
According to EN |
| SCIP |
d62541f7-8058-4336-b693-7303c8b40800 |
| Secondary voltage adjustable |
true |
| Shock resistance IEC 60068-2-27 |
15 g In all directions |
| Short-circuit protection |
Yes, internal |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
None |
| Stabilized |
true |
| Start-up |
= -40°C |
| Storage temperature |
-40 °C...85°C |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| TS 35, top and bottom |
insulation |
| UL File Number Search |
UL Website |
| Version |
Power supply, switch-mode power supply unit, 12 |
| Vibration resistance IEC 60068-2-6 |
2.3 g |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
true |
| Weight |
258g |
| Width |
72mm |
| Width (inches) |
2.8346 inch |
| Wire connection cross section, flexible 2.5 mm² |
Conductor cross-section, flexible , min. 0.25mm² |
| Wire connection method |
PUSH IN with actuator |
