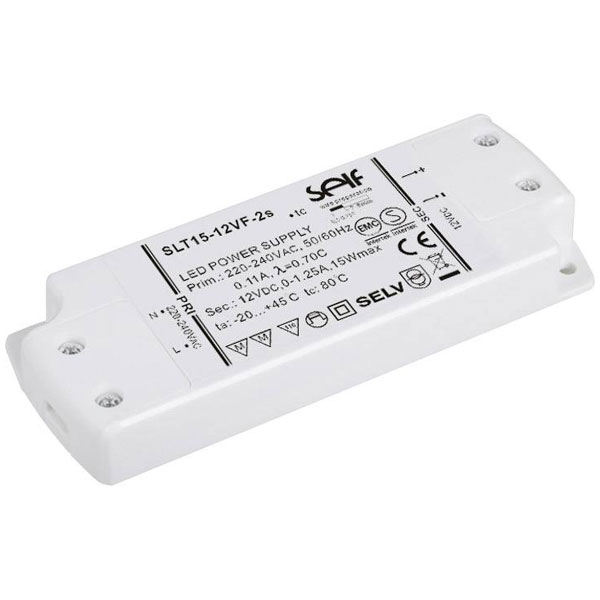

Self Electronics SLT15-12VF-2S SLT-series LED Driver 15W 12V Surge Protection

Self Electronics
Standard range
Order Code:

10-5681

Brand: Self Electronics MPN: SLT15-12VF-2S EAN-13: 4021087047241
Qty Unit Price (Ex VAT)
1+ £8.65
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
175 in stock, despatched in 4 working days

The Self Electronics SLT15-12VF-2S is a 15-watt LED driver providing a constant voltage of 12 V DC at 1.25 A output. It is non-dimmable and equipped with surge and overvoltage protection, making it suitable for flammable surfaces. This LED transformer is typically used with LED strip lights and other LED lighting systems.
Type LED transformer
Connection Clamp
Dim (L x W x H) 121 x 45 x 16 mm
Factory colour White
Height 16mm
Input voltage (max.) 264V AC
Inputs 1
IP rating IP20
Length 121mm
Max. output current 1.25A
Max. power 15W
Max. temperature 45°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute Constant voltage
No. of inputs 1
No. of outputs 1
Operating voltage 230V AC
Output current (max.) - rounded 1.25A
Output voltage (max.) 12V DC
Power range 15 W (max)
Protection class II
Weight 64g
Width 45mm
