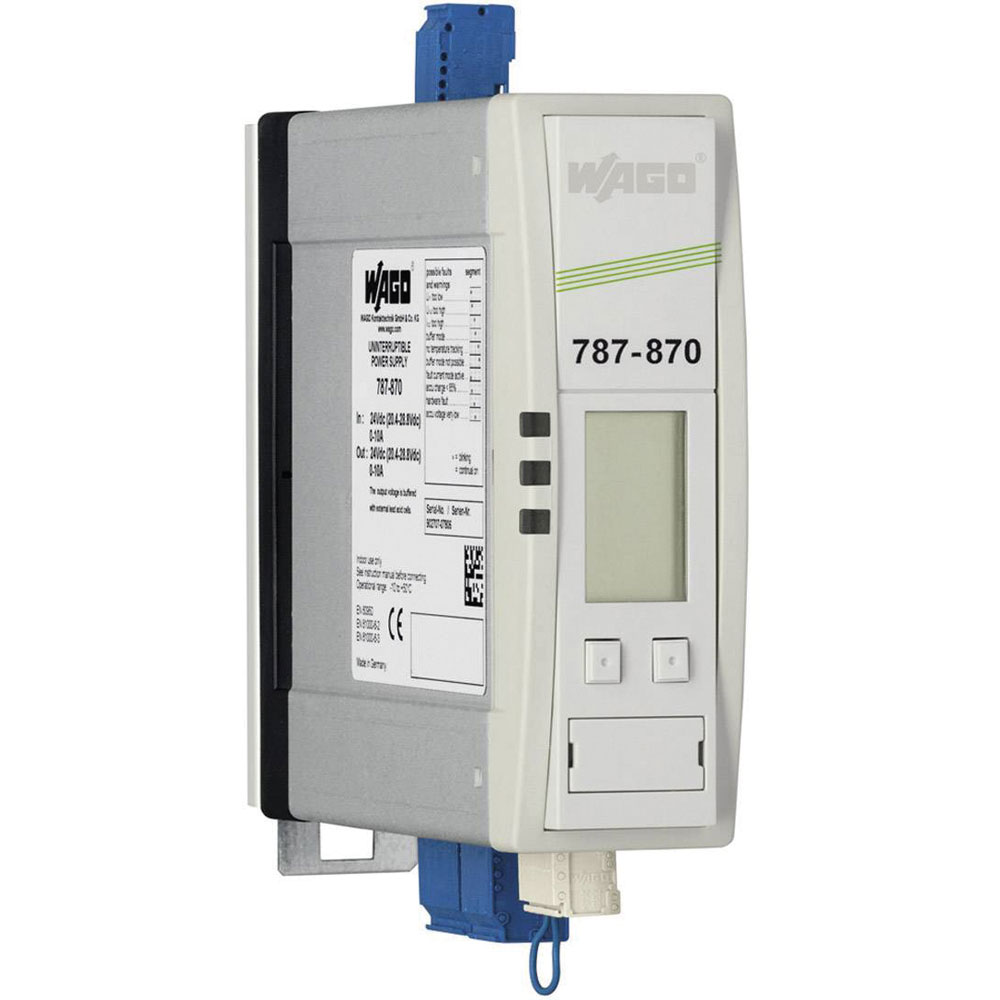

WAGO 787-870 EPSITRON UPS Module Charging & Control for UPS Installation

The Wago Epsitron® 787-870 UPS switching module ensures uninterrupted power supply with reliable performance and high efficiency. It features intelligent battery management and real-time monitoring capabilities. This module is ideal for industrial automation and control applications, providing backup power during outages.

Type	UPS switching module
Input Voltage	28.8V DC
Output Voltage	19.9V DC
Current Rating	0.6A
Bridging time, max load	10s
Category	Power Supplies
Connection	CAGE CLAMP®
Connections	0,08 - 2,5 mm² (WAGO series 231)
Depth	171mm
Dim	(W x H x D) 57 x 163 x 171 mm
Fine-stranded conductor max. AWG	12 AWG
Fine-stranded conductor max. mm²	2.5mm²
Fine-stranded conductor min. AWG	12 AWG
Fine-stranded conductor min. mm²	0.08mm²
Height	163mm
Height inch	6.417inches
Height mm	163mm
Input Current	0.1 - 21.5A
Interfaces	RS232
Minimum Input Volage	20.4V DC
Misc Attribute	EPSITRON® 787-870
No of Outlets	2
of which battery-buffered	2
Output current (details)	20A
Product Main Function	Uninterruptible power supply
Single-stranded conductor max. AWG	12 AWG
Single-stranded conductor max. mm²	2.5mm²
Single-stranded conductor min. AWG	28 AWG
Single-stranded conductor min. mm²	0.08mm²
Stripping length of 1 mm	8mm
Stripping length up to 1 mm	9mm
Unit Weight	KGM
Weight	1200g
Width	57mm
Width inch	1.575inches
Width mm	40mm
with surge protection	2
