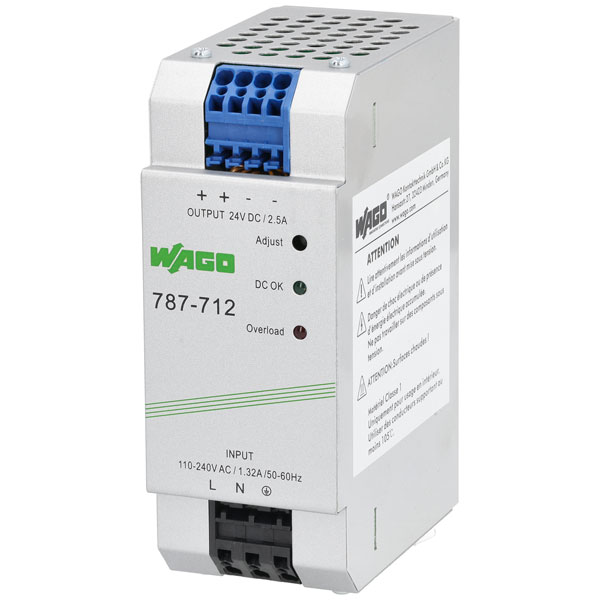

WAGO 787-712 Eco Single Phase 24VDC 2.5A DIN-35 Rail Power Supply

WAGO
Order Code:

52-2894

Brand: WAGO MPN: 787-712 EAN-13: 4045454908195
Qty Unit Price (Ex VAT)
1+ £74.96
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 24/04/2026

This WAGO 787-712 Eco Single Phase 24VDC 2.5A Power Supply is suitable for both parallel and series operations.

The PSU is designed with safety and precision in mind, with an electrically isolated and adjustable output voltage range of 22-28V. Built in optical indication also enables you to check the status of your PSU at a glance via the DC-OK (Green) and Overload (Red) LEDs.


  • Suitable for both parallel and series circuit applications
  • Electrically isolated output voltage (SELV)
  • Natural convection cooling when horizontally mounted
  • Optical DC-OK and Overload status indication
  • Encapsulated for control cabinet applications
  • DIN-35 Rail mountable
Type DIN Rail
Output Voltage 22 - 28V
Output Current 2.5A
Number of Outputs 1
Category Power Supplies
Connection CAGE CLAMP®
Dimensions 136 x 50 x 92mm
Fine-stranded conductor max. AWG 12 AWG
Fine-stranded conductor max. mm² 4 mm²
Fine-stranded conductor min. AWG 12 AWG
Fine-stranded conductor min. mm² 0.08 mm²
Height inch 3.622 inches
Height mm 92mm
Input Voltage 110 - 240V
Mounting Type DIN-35 rail
Product Main Function Power Supply
Single-stranded conductor max. AWG 12 AWG
Single-stranded conductor max. mm² 4 mm²
Single-stranded conductor min. AWG 28 AWG
Single-stranded conductor min. mm² 0.08 mm²
Stripping length of 1 mm 8mm
Stripping length up to 1 mm 9mm
Unit Weight KGM
Width inch 1.969 inches
Width mm 50mm
