TE Connectivity DC Power Crimp contact 608610

TE Connectivity Brand: TE Connectivity

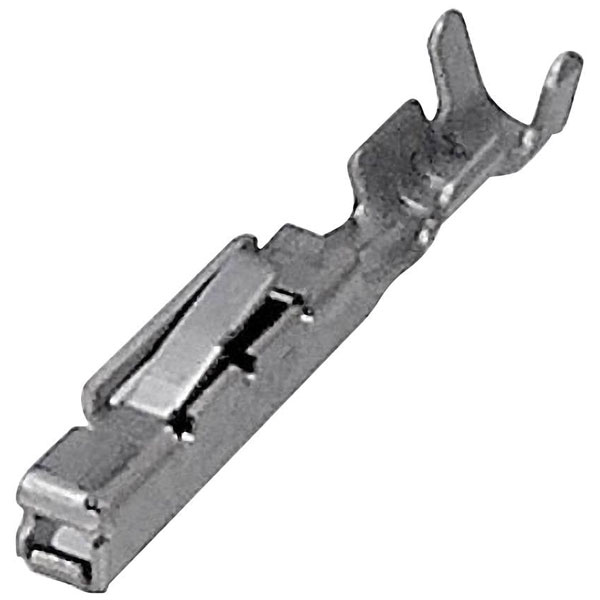

The parts are crimp contacts manufactured by TE Connectivity, featuring individual pins and designed for dynamic electrical applications.
Description Image Product Buy Pricing (Ex VAT) AWG (min.) AWG max. Connector contact surface Connector system Connector Type Dim Height Length max. cross section Min. cross section Misc Attribute Nominal Current Nominal current - rounded value Series Width Type Connection Contact Material Industrial packaging Max. temperature
TE Connectivity 1318107-1 Dynamic 2000 Crimp Contact 1 Pin 1 pc
TE Connectivity 1318107-1 Dynamic 2000 Crimp Contact 1 Pin 1 pc
Standard range
Order code: 07-3528
MPN: 1318107-1

961 in stock, despatched in 4 working days
25+ £0.188
Price per unit Ex VAT 		22 18 Gold plated wire-to-board Socket (L x W x H) 2.58 x 15.98 x 2.7 mm 2.7mm 2.58mm 0.86mm² 0.34mm² DYNAMIC D-2 5A 5A DYNAMIC 2000 Series 15.98mm Crimp contact Crimp Copper alloy No +105°C
TE Connectivity 1318112-1 Dynamic 2000 Crimp Contact 1 Pin
TE Connectivity 1318112-1 Dynamic 2000 Crimp Contact 1 Pin
Standard range
Order code: 07-3530
MPN: 1318112-1

412 in stock, despatched in 4 working days
20+ £0.331
Price per unit Ex VAT 		28 24 Gold plated wire-to-board Pin (L x W x H) 2.63 x 21.95 x 2.7 mm 2.7mm 2.63mm 0.38mm² 0.08mm² DYNAMIC D-2 5A 5A DYNAMIC 2000 Series 21.95mm Crimp contact Crimp Copper alloy No +105°C
TE Connectivity 1871745-1 Dynamic 1000 Crimp Contact 1 Pin 1 pc
TE Connectivity 1871745-1 Dynamic 1000 Crimp Contact 1 Pin 1 pc
Standard range
Order code: 07-3928
MPN: 1871745-1

277 in stock, despatched in 4 working days
50+ £0.140
Price per unit Ex VAT 		22 18 Tin plated wire-to-board Socket (L x W x H) 2.84 x 8.6 x 3.23 mm 3.23mm 2.84mm 0.86mm² 0.34mm² DYNAMIC D-1 5A 5A DYNAMIC 1000 Series 8.6mm Crimp contact Crimp Copper alloy No +105°C
TE Connectivity 1903118-2 Dynamic 1000 Series Crimp Contact 1 Pin
TE Connectivity 1903118-2 Dynamic 1000 Series Crimp Contact 1 Pin
Standard range
Order code: 07-3931
MPN: 1903118-2

5,350 in stock, despatched in 4 working days
20+ £0.261
Price per unit Ex VAT 		22 18 Gold plated wire-to-board Pin (L x W x H) 2.2 x 12.95 x 2.7 mm 2.7mm 2.2mm 0.86mm² 0.34mm² DYNAMIC D-1 5A 5A DYNAMIC 1000 Series 12.95mm Crimp contact Crimp Copper alloy No +105°C
TE Connectivity 316041-2 Dynamic 5000 Crimp Contact 1 Pin
TE Connectivity 316041-2 Dynamic 5000 Crimp Contact 1 Pin
Standard range
Order code: 07-4345
MPN: 316041-2

98 in stock, despatched in 4 working days
2+ £4.58
Price per unit Ex VAT 		12 10 Gold plated wire-to-wire Socket (L x W x H) 7.66 x 23.4 x 7.7 mm 7.7mm 7.66mm 5.50mm² 3.08mm² D-5200S 30A 30A DYNAMIC 5000 Series 23.4mm Crimp contact Crimp Copper alloy No +105°C
TE Connectivity 917805-2 Dynamic 5000 Series Crimp Contact 1 Pin
TE Connectivity 917805-2 Dynamic 5000 Series Crimp Contact 1 Pin
Standard range
Order code: 07-5057
MPN: 917805-2

25 in stock, despatched in 4 working days
2+ £2.43
Price per unit Ex VAT 		12 10 Gold plated wire-to-wire Pin (L x W x H) 7.66 x 33.7 x 7.7 mm 7.7mm 7.66mm 5.50mm² 3.08mm² D-5200S 30A 30A DYNAMIC 5000 Series 33.7mm Crimp contact Crimp Copper alloy No +105°C
