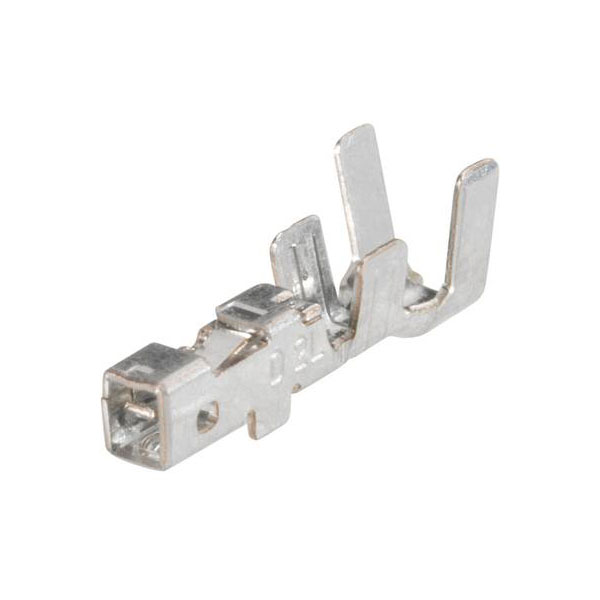

TE Connectivity manufactures the crimp contact DYNAMIC D-1 from the 1000 Series, part number 1871745-1, with a single pin. This component is designed for reliable electrical connections in various electronic applications, ensuring secure and stable performance. Typical applications include automotive and industrial equipment, where robust connectivity is essential.
| Type |
Crimp contact |
| AWG (min.) |
22 |
| AWG max. |
18 |
| Circuit Application |
Signal |
| Connection |
Crimp |
| Connector contact surface |
Tin plated |
| Connector System |
wire-to-board |
| Contact Current Rating |
3a |
| Contact Current Rating (Max) |
5 |
| Contact Gender |
Female |
| Contact Material |
Copper alloy |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Plating |
Tin |
| Contact Retention |
Yes (With) |
| Contact Type |
Receptacle |
| Current Rating |
5A |
| Dim |
(L x W x H) 2.84 x 8.6 x 3.23 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Height |
3.23mm |
| Industrial packaging |
No |
| Insulation Diameter |
0.087inch |
| Length |
2.84mm |
| Mating Tab Thickness |
.02 |
| Mating Tab Width |
.027 |
| Max Operating Temperature |
221°C |
| max. cross section |
0.86mm² |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. cross section |
0.34mm² |
| Min. temperature |
-55°C |
| Misc Attribute |
DYNAMIC D-1 |
| Mount |
Cable |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag & Box |
| Pin shape |
Rectangular |
| Pins per row |
1 |
| Plug / Socket |
Socket |
| Product Terminates To |
Wire & Cable |
| RoHS Compliant |
Yes |
| Series |
DYNAMIC 1000 Series |
| Termination |
Crimp |
| Total number of pins |
1 |
| Width |
8.6mm |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
18AWG |
| Wire Size |
22 – 18 |
| Wire/Cable Gauge |
18AWG |
| Wire/Cable Type |
Discrete |
