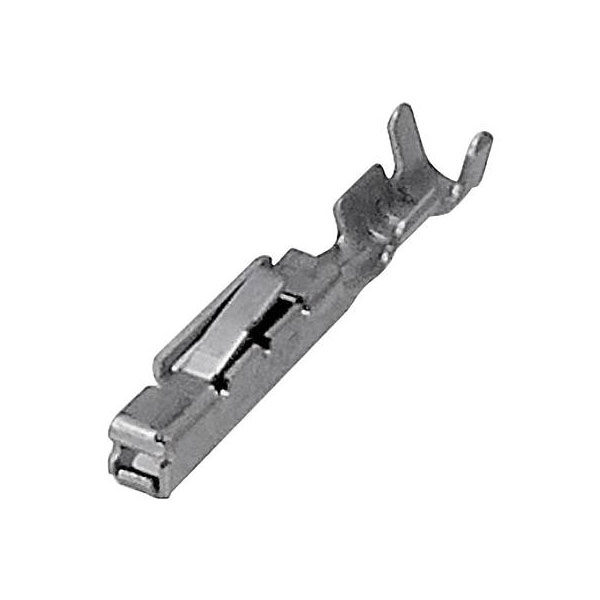

The TE Connectivity 1318107-1 is a connector accessory designed for cables with a minimum diameter of 0.051 inches.
It features durable construction suitable for various electrical applications.
This part ensures reliable connectivity in industrial and automotive environments.
The 1318107-1 provides enhanced protection and longevity for cable assemblies.
| Type |
Crimp contact |
| AWG (min.) |
22 |
| AWG max. |
18 |
| Barrel Type |
Open |
| Circuit Application |
Power & Signal |
| Compatible Insulation Diameter Range |
.048 – .075 |
| Connection |
Crimp |
| Connector contact surface |
Gold plated |
| Connector System |
wire-to-board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
5a |
| Contact Current Rating (Max) |
5 |
| Contact Material |
Copper alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
Yes (With) |
| Contact Retention Within Housing |
With |
| Contact Type |
Receptacle |
| Contact Underplating Material |
Nickel |
| Current Rating |
5A |
| Depth |
2.58mm |
| Dim |
(L x W x H) 2.58 x 15.98 x 2.7 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Height |
2.7mm |
| Industrial packaging |
No |
| Insulation Diameter |
1.9mm |
| Lead Free |
Lead Free |
| Length |
2.58mm |
| Mating Tab Thickness |
.019 |
| Mating Tab Width |
.035 |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| max. cross section |
0.86mm² |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. cross section |
0.34mm² |
| Min. temperature |
-55°C |
| Misc Attribute |
DYNAMIC D-2 |
| Mount |
Cable |
| Number of Ports |
1 |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag & Box |
| Packaging Quantity |
15000 |
| Pin shape |
Rectangular |
| Pins per row |
1 |
| Plug / Socket |
Socket |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
DYNAMIC 2000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
1 |
| Underplate Material |
Nickel |
| Width |
15.98mm |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
18AWG |
| Wire Insulation Support |
With |
| Wire Size |
22 – 18 |
| Wire/Cable Gauge |
18AWG |
| Wire/Cable Type |
Discrete |
