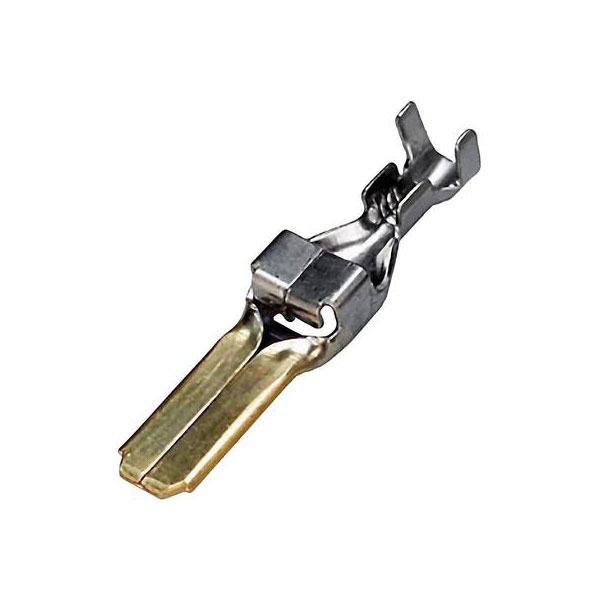

TE Connectivity 917805-2 features Amp headers and wire housings for secure electrical connections.
It accommodates male tabs and supports 12-10 AWG wire sizes with a 15AU plating for enhanced durability.
This product is known for its robust design, making it suitable for demanding applications.
Typical uses include industrial equipment and automotive wiring systems.
| Type |
Pin |
| Number of Contacts |
1 |
| Gender |
Male |
| Number of Rows |
1 |
| Barrel Type |
Open |
| Circuit Application |
Power |
| Compatible Insulation Diameter Range |
.157 – .205 |
| Connection |
Crimp |
| Connector contact surface |
Gold plated |
| Connector System |
wire-to-wire |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
30a |
| Contact Current Rating (Max) |
30 |
| Contact Gender |
Male |
| Contact Material |
Copper alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
Yes (With) |
| Contact Retention Within Housing |
With |
| Contact Type |
Tab |
| Contact Underplating Material |
Nickel |
| Current Rating |
30A |
| Depth |
7.7mm |
| Dimensions |
(L x W x H) 7.66 x 33.7 x 7.7 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Height |
7.7mm |
| Industrial packaging |
No |
| Insulation Diameter |
0.204inch |
| Lead Free |
Lead Free |
| Length |
7.66mm |
| Mating Tab Thickness |
.039 |
| Mating Tab Width |
.25 |
| Max Operating Temperature |
221°C |
| max. cross section |
5.50mm² |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. cross section |
3.08mm² |
| Min. temperature |
-55°C |
| Misc Attribute |
D-5200S |
| Mount |
Cable |
| Operating Supply Voltage |
630v |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
630 |
| Orientation |
Straight |
| Package Quantity |
500 |
| Packaging |
Bag |
| Packaging Method |
Bag & Box |
| Packaging Quantity |
3000 |
| Pin shape |
Rectangular |
| Pins per row |
1 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
DYNAMIC 5000 Series |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Underplate Material |
Nickel |
| Voltage Rating |
600v |
| Width |
33.7mm |
| Wire Gauge (AWG) |
10 |
| Wire Gauge (Max) |
10AWG |
| Wire Gauge (Min) |
12AWG |
| Wire Insulation Support |
With |
| Wire Size |
12 – 10 |
| Wire/Cable Gauge |
12AWG |
| Wire/Cable Type |
Discrete |
