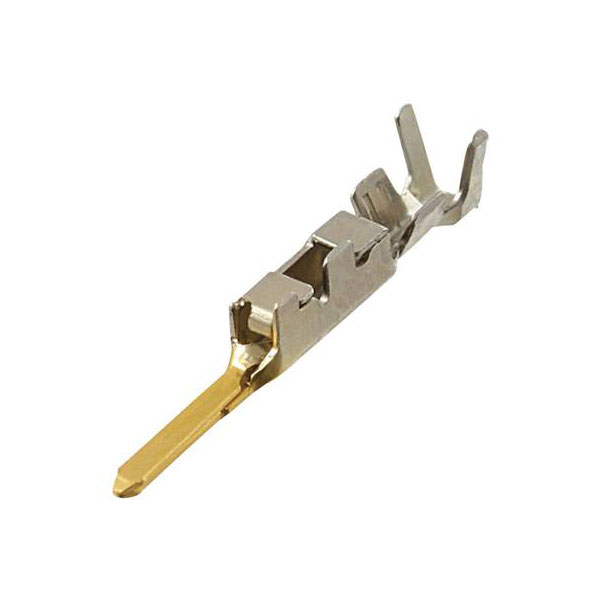

The TE Connectivity Crimp Contact is from the Dynamic 1000 Series, designed with a single pin for secure electrical connections. It is particularly useful in applications requiring reliable power or signal transfer, such as automotive or industrial environments. Tyco Electronics manufactures these crimp contacts, ensuring compatibility with the D-1 connector system.
| Type |
Crimp contact |
| Pin or Socket |
Male |
| AWG (min.) |
22 |
| AWG max. |
18 |
| Barrel Type |
Open |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.055 – .087 |
| Connection |
Crimp |
| Connector contact surface |
Gold plated |
| Connector System |
wire-to-board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
3a |
| Contact Current Rating (Max) |
5 |
| Contact Material |
Copper alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
Yes (With) |
| Contact Type |
Tab |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 |
| Current Rating |
5A |
| Dim |
(L x W x H) 2.2 x 12.95 x 2.7 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
2.7mm |
| Industrial packaging |
No |
| Insulation Diameter |
0.087inch |
| Length |
2.2mm |
| Mating Tab Thickness |
.02 |
| Mating Tab Width |
.027 |
| max. cross section |
0.86mm² |
| Maximum Operating Temperature |
221°C |
| Maximum Temperature |
+105°C |
| Min. cross section |
0.34mm² |
| Min. temperature |
-55°C |
| Minimum Operating Temperature |
-67°C |
| Misc Attribute |
DYNAMIC D-1 |
| Mount |
Cable |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag & Box |
| Packaging Quantity |
12000 |
| Pin shape |
Rectangular |
| Pins per row |
1 |
| Plug / Socket |
Pin |
| Product Terminates To |
Wire & Cable |
| RoHS Compliant |
Yes |
| Series |
DYNAMIC 1000 Series |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
1 |
| Underplate Material |
Nickel |
| Width |
12.95mm |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
18AWG |
| Wire Insulation Support |
With |
| Wire Size |
22 – 18 |
| Wire/Cable Gauge |
18AWG |
| Wire/Cable Type |
Discrete |
