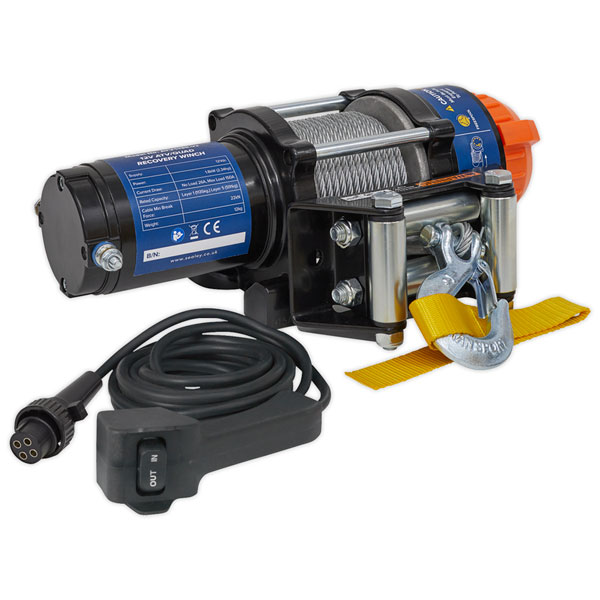

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
- Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
- High power 1.8kW(2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
- Heavy-duty all-weather housing.
- 3-Stage planetary gears.
- Patented unique automatic spring brake, reliable in full load operation.
- Sliding ring gear clutch.
- High quality wire rope feeds through 4-way roller fairlead.
- IP67 rated motor and gearbox.
- Gear Ratio: 180:1.
- Model No. ATV1135
*Performance quoted at first layer of cable on drum
| Type |
Winch |
| Cable Minimum Brake Force |
22kN |
| Capacity |
1135kg |
| Consumable Parts |
ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 |
| Current Draw |
No-Load - 26A, Maximum Load - 150A |
| Gear Ratio |
180:1 |
| Line Pull* |
1135kg(2500lb) |
| Line Speed* |
No-Load - 4.8m/min, Maximum Load - 1.6m/min |
| Motor Power |
1.8kW(2.34hp) |
| Nett Weight |
11.8kg |
| Note |
*Performance quoted at first layer of cable on drum |
| Rated Capacity |
Layer 1: 1135kg, Layer 5: 591kg |
| Supply |
12V |
| Wire Rope Diameter |
4.8mm |
| Wire Rope Length |
14m |
