Production Line 24v (replacement for #96790)

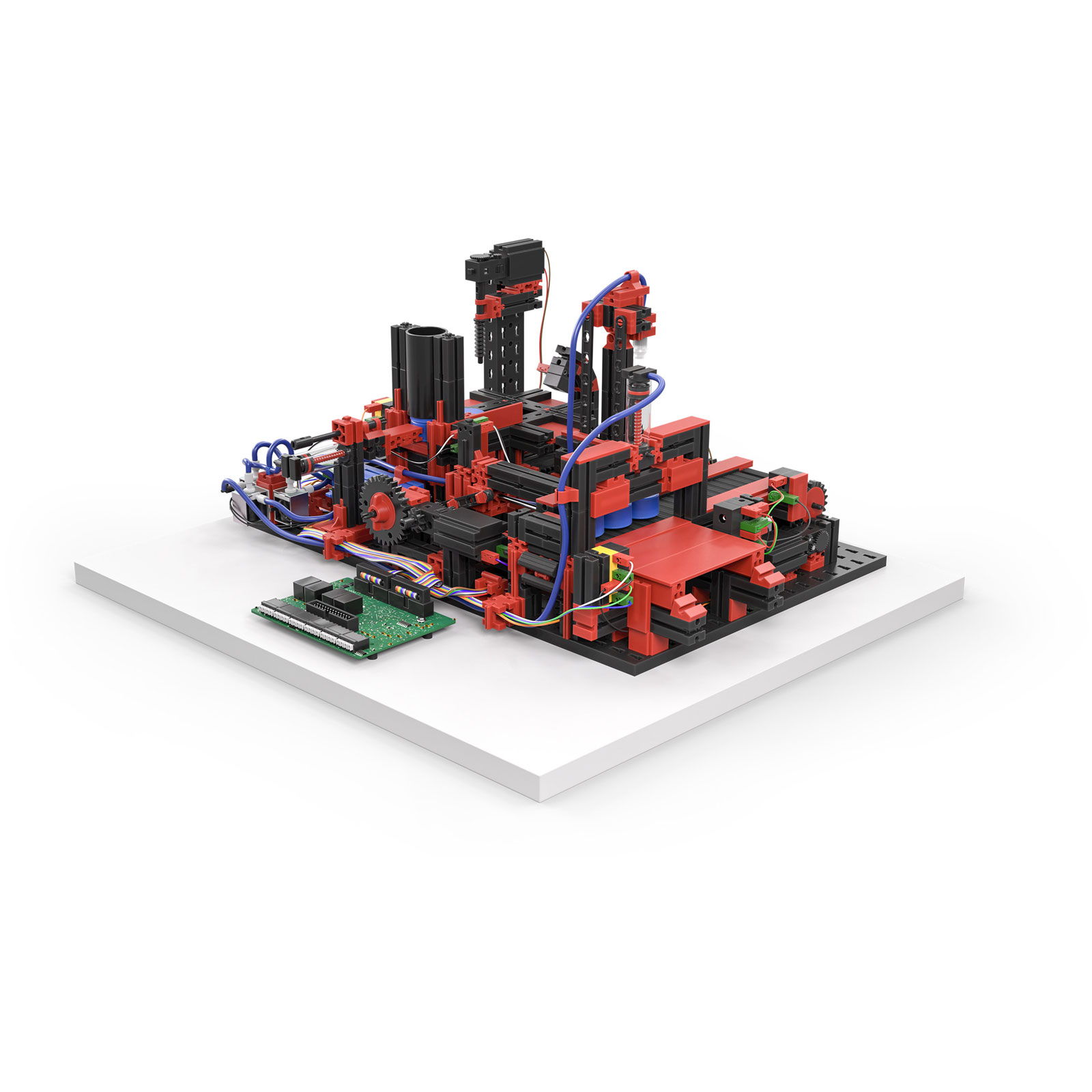

The Fischertechnik production line 24V simulates a series of interlinked production steps. At the beginning, the workpieces are loaded from a magazine onto a rotary indexing table with four stations using a pneumatic pusher. The rotary indexing table transports the workpieces step by step to the drilling and welding station, where the workpieces are processed. At the last station of the rotary indexing table, a vacuum suction gripper removes the processed workpieces and places them on a conveyor belt. This transports the workpieces to the palletizing unit, where 3 workpieces are collected and then pushed onto a pallet.

The 24V production line includes a comprehensive PLC course that uses the physical model to create a lasting learning experience for PLC programming. At the end of the course, the learner will be able to wire the Production Line 24V independently and program it in function block diagram or structured text. In a safe, yet industry-real environment, the learner builds up know-how that can be used for real machine programming and commissioning. The didactic concept covers all the essential steps from wiring using a circuit diagram and creating a flowchart to programming (FBD or SCL) and commissioning the model. Thanks to the action-oriented approach of this training model, participants not only develop a deep understanding of PLC programming, but also the ability to master complex control tasks independently. The model promotes hands-on learning, creativity and problem-solving skills, optimally preparing participants for the demands of industrial practice. Industry-oriented and hands-on, fit for the future!

The Fischertechnik 24V production line is the ideal training model for in-company and inter-company training and further education. Apprentices, students and trainees develop sustainable learning experiences on the physical training model. The practice-oriented approach succeeds thanks to a comprehensive PLC course that introduces learners step by step to working with programmable logic controllers. From creating a sequence description in GRAFCET, to reading and using a circuit diagram, to programming in a function block diagram or structured text and finally commissioning the training model, our PLC course covers all the points needed to apply the knowledge learned in a real industrial environment. - Action-oriented AND safe learning environment for PLC programming - Ideal for in-company and inter-company training and further education - Consistent learning concept thanks to the combination of physical training model and PLC course .
