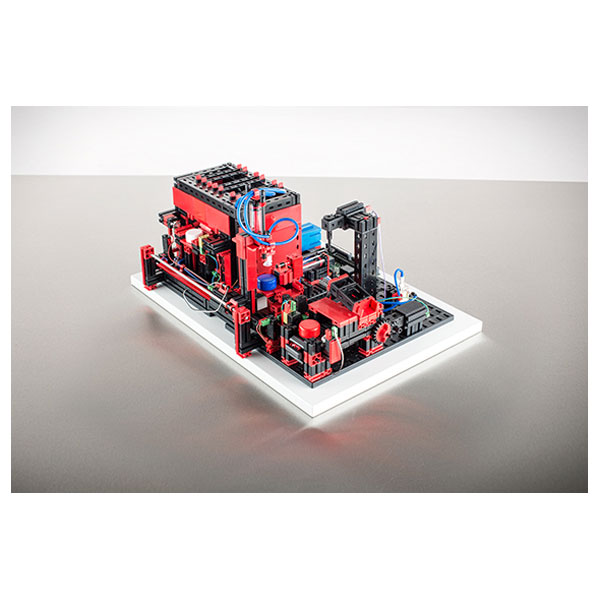

Fischertechnik 536632 Multi Working Station with Furnace 24V

The Fischertechnik 536632 Multi Working Station with Furnace 24V includes a Furnace with pneumatic sliding door, downstream processing station with pneumatic transfer unit including vacuum gripper, cutter with rotary table and conveyor belt.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.

Current consumption: I = ca. 1.6A
Inputs digital: 9
Outputs 24V: 14

• Multi-station manufacturing system
• Furnace process simulation
• Industrial workflow training
• Automation learning model
