Mean Well Open & DIN Power Supply Units Rail mounted DC/DC converter 608287

Mean Well Brand: Mean Well
The components in this group are Mean Well DIN rail DC/DC converters, designed to provide reliable power conversion with a single output, suitable for various electronic applications.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Output Current Efficiency Input Voltage Input voltage (max.) Max. output current Min. input voltage Nominal Input Voltage Type Number of Outputs Power Rating Connection Dim Height Length MTBF Operating temperature (max.) Operating temperature (min.) Output type (power supply units) Width
Mean Well DDR-240B-24 DIN rail DC/DC converter 24VDC 10A 240W 1 output
Mean Well DDR-240B-24 DIN rail DC/DC converter 24VDC 10A 240W 1 output
Extended range
Order code: 05-0288
MPN: DDR-240B-24

16 available to back orderBack-order availability date - 11/01/2026
1+ £84.94
Price per unit Ex VAT 		24V DC 10A 90% 16,8-33,6V DC 33.6V DC 10A 16.8V DC 24 V/DC Rail mounted DC/DC converter (DIN) 1 240W Clamp (L x W x H) 40 x 113.5 x 125.2 mm 125.2mm 40mm 484900h +70°C -40°C Adjustable 113.5mm
Mean Well DDR-240B-48 rail DC/DC converter 48V 5A 240W 1 output DIN rail
Mean Well DDR-240B-48 rail DC/DC converter 48V 5A 240W 1 output DIN rail
Standard range
Order code: 05-0289
MPN: DDR-240B-48

Available to back orderBack-order availability date - 04/01/2026
1+ £83.66
Price per unit Ex VAT 		48V DC 5A 90% 16,8-33,6V DC 33.6V DC 5A 16.8V DC 24 V/DC Rail mounted DC/DC converter (DIN) 1 240W Clamp (L x W x H) 40 x 113.5 x 125.2 mm 125.2mm 40mm 484900h +70°C -40°C Adjustable 113.5mm
Mean Well DDR-240C-24 Rail DC/DC Converter 24V 10A 240W 1 Output
Mean Well DDR-240C-24 Rail DC/DC Converter 24V 10A 240W 1 Output
Extended range
Order code: 05-0290
MPN: DDR-240C-24

Available to back orderBack order, lead time 8 days
1+ £132.64
Price per unit Ex VAT 		24V DC 10A 91% 33,6-67,2V DC 67.2V DC 10A 33.6V DC 48 V/DC Rail mounted DC/DC converter (DIN) 1 240W Clamp (L x W x H) 40 x 113.5 x 125.2 mm 125.2mm 40mm 484900h +70°C -40°C Adjustable 113.5mm
Mean Well DDR-240C-48 DIN Rail DC/DC Converter 48V 5A 240W 1 Output
Mean Well DDR-240C-48 DIN Rail DC/DC Converter 48V 5A 240W 1 Output
Standard range
Order code: 05-0291
MPN: DDR-240C-48

Available to back orderBack-order availability date - 04/01/2026
1+ £104.75
Price per unit Ex VAT 		48V DC 5A 92% 33,6-67,2V DC 67.2V DC 5A 33.6V DC 48 V/DC Rail mounted DC/DC converter (DIN) 1 240W Clamp (L x W x H) 40 x 113.5 x 125.2 mm 125.2mm 40mm 484900h +70°C -40°C Adjustable 113.5mm

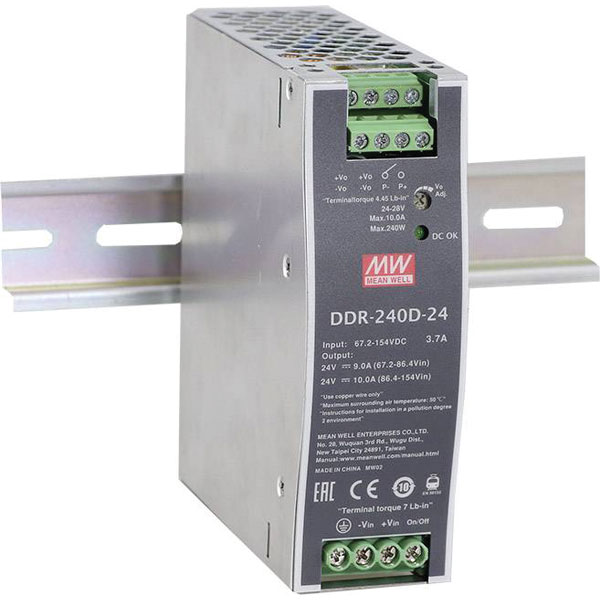

Mean Well DDR-240D-24 rail DC/DC converter DIN 24V 10A 240W 1 output
Mean Well DDR-240D-24 rail DC/DC converter DIN 24V 10A 240W 1 output
Standard range
Order code: 05-0292
MPN: DDR-240D-24

Available to back orderBack-order availability date - 04/01/2026
1+ £84.12
Price per unit Ex VAT 		24V DC 10A 92% 67.2-154V DC 154V DC 10A 67.2V DC Rail mounted DC/DC converter (DIN) 1 240W Clamp (L x W x H) 40 x 113.5 x 125.2 mm 125.2mm 40mm 484900h +70°C -40°C Adjustable 113.5mm
Mean Well DDR-240D-48 DIN rail DC/DC converter 48V DC 5A 240W 1 output
Mean Well DDR-240D-48 DIN rail DC/DC converter 48V DC 5A 240W 1 output
Standard range
Order code: 05-0293
MPN: DDR-240D-48

Available to back orderBack-order availability date - 04/01/2026
1+ £104.75
Price per unit Ex VAT 		48V DC 5A 92.5% 67.2-154V DC 154V DC 5A 67.2V DC Rail mounted DC/DC converter (DIN) 1 240W Clamp (L x W x H) 40 x 113.5 x 125.2 mm 125.2mm 40mm 484900h +70°C -40°C Adjustable 113.5mm
